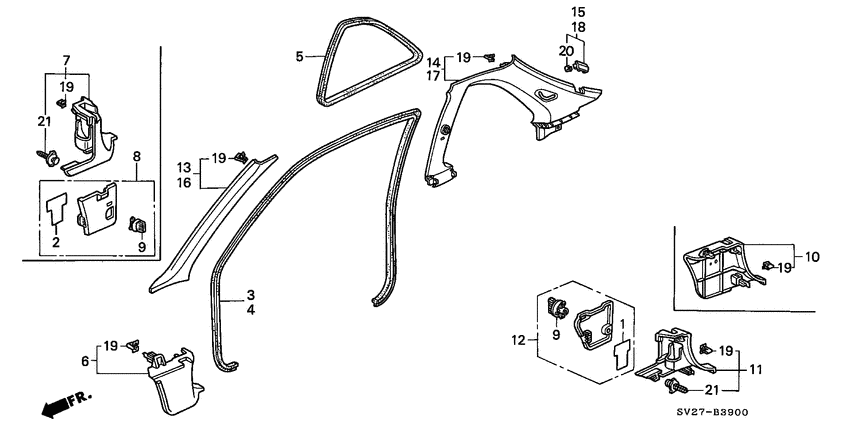

Pillar garnish Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0IES
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (dealer set)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38205-SV4-A00
Label
|
38205-SV4-A00 |
— | ||
|
3
|
3
72315-SV2-013ZB
Seal
|
72315-SV2-013ZB |
— | ||
|
3
|
3
72315-SV2-013ZE
Seal
|
72315-SV2-013ZE |
— | ||
|
4
|
4
72355-SV2-013ZE
Seal
|
72355-SV2-013ZE |
— | ||
|
4
|
4
72355-SV2-013ZB
Seal
|
72355-SV2-013ZB |
— | ||
|
5
|
5
73541-SV2-003
Trim
|
73541-SV2-003 |
— | ||
|
6
|
6
83111-SV2-A00ZE
Lining assy.
|
83111-SV2-A00ZE |
— | ||
|
6
|
6
83111-SV2-A00ZB
Lining assy.
|
83111-SV2-A00ZB |
— | ||
|
9
|
9
83113-SV4-003ZC
Lock
|
83113-SV4-003ZC |
— | ||
|
9
|
9
83113-SV4-003ZM LockLID *YR169L* |
83113-SV4-003ZM |
US $3.08 |
||
|
11
|
11
83161-SV4-A01ZE
Lining assy.
|
83161-SV4-A01ZE |
— | ||
|
11
|
11
83161-SV4-A01ZB
Lining assy.
|
83161-SV4-A01ZB |
— | ||
|
12
|
12
83162-SV4-000ZB
Cover
|
83162-SV4-000ZB |
— | ||
|
12
|
12
83162-SV4-000ZE
Cover
|
83162-SV4-000ZE |
— | ||
|
13
|
13
84101-SV2-A00ZE
Garnish assy
|
84101-SV2-A00ZE |
— | ||
|
13
|
13
84101-SV2-A00ZB
Garnish assy
|
84101-SV2-A00ZB |
— | ||
|
14
|
14
84130-SV2-A00ZB
Lining
|
84130-SV2-A00ZB |
— | ||
|
14
|
14
84130-SV2-A00ZE
Lining
|
84130-SV2-A00ZE |
— | ||
|
15
|
15
84133-SV2-A00ZE
Cap
|
84133-SV2-A00ZE |
— | ||
|
15
|
15
84133-SV2-A00ZB
Cap
|
84133-SV2-A00ZB |
— | ||
|
16
|
16
84151-SV2-A00ZE
Garnish assy
|
84151-SV2-A00ZE |
— | ||
|
16
|
16
84151-SV2-A00ZB
Garnish assy
|
84151-SV2-A00ZB |
— | ||
|
17
|
17
84180-SV2-A00ZE
Lining
|
84180-SV2-A00ZE |
— | ||
|
17
|
17
84180-SV2-A00ZB
Lining
|
84180-SV2-A00ZB |
— | ||
|
18
|
18
84183-SV2-A00ZE
Cap
|
84183-SV2-A00ZE |
— | ||
|
18
|
18
84183-SV2-A00ZB
Cap
|
84183-SV2-A00ZB |
— | ||
|
19
|
19
90610-SR3-003 ClipGARNISH (KATO) |
90610-SR3-003 |
US $1.72 |
||
|
20
|
20
90666-SM4-003 ClipSNAP FITTING |
90666-SM4-003 |
US $1.40 |
||
|
21
|
21
91580-SF9-003
Clip
|
91580-SF9-003 |
— | ||
|
21
|
21
91580-SV1-003
Clip
|
91580-SV1-003 |
— |
