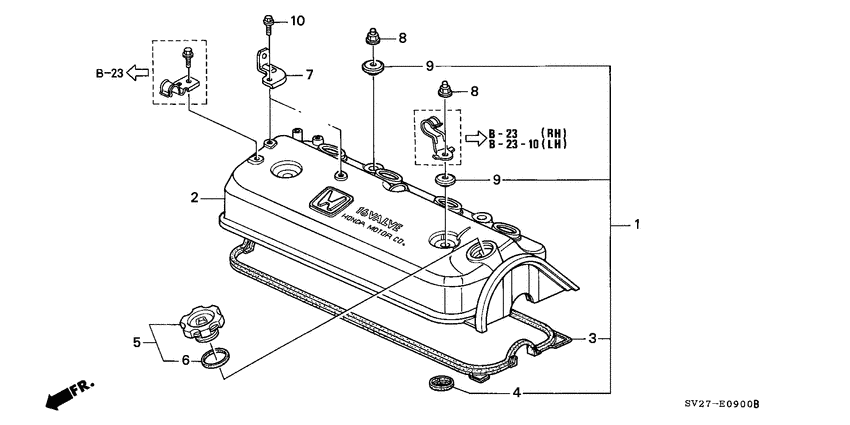

Cylinder head cover Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0IES
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-PT0-000 Packing setHEAD COVER |
12030-PT0-000 |
from US $74.39 |
||
|
2
|
2
12310-P0J-A01
Cover comp.
|
12310-P0J-A01 |
— | ||
|
3
|
3
12341-PT0-000 PackingCYLINDER HEAD COVER |
12341-PT0-000 |
from US $15.19 |
||
|
4
|
4
12342-PT0-000 Packing bHEAD COVER |
12342-PT0-000 |
from US $5.42 |
||
|
5
|
5
15610-P2A-000 Cap assy.OIL FILLER |
15610-P2A-000 |
from US $17.41 |
||
|
6
|
6
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
7
|
7
32762-PT0-010
Stay b
|
32762-PT0-010 |
— | ||
|
8
|
8
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.22 |
||
|
9
|
9
90441-PT0-000
Washer
|
90441-PT0-000 |
— | ||
|
10
|
10
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
