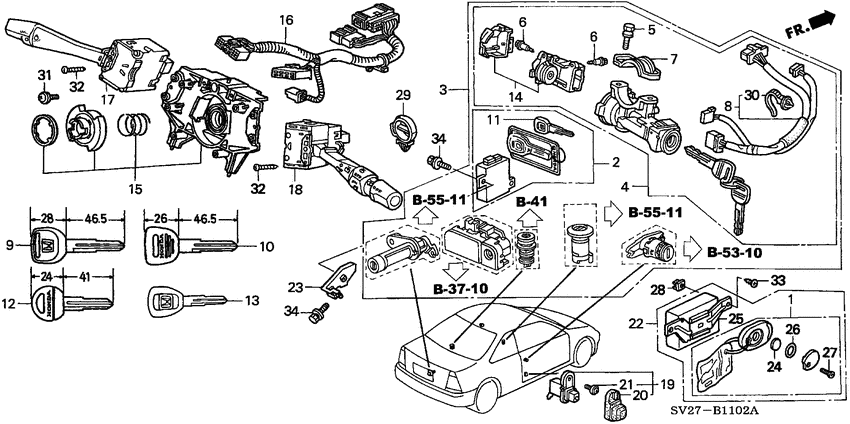

Combination switch ('96-; KG,KY) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0IES
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (dealer set)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04808-SV2-003
Transmitter assy
|
04808-SV2-003 |
— | ||
|
2
|
2
04809-SX0-G04 Key & unit assy.IMMOBILIZER (SERVICE) |
04809-SX0-G04 |
US $299.52 |
||
|
3
|
3
06350-SV2-G03ZC
Cylinder set
|
06350-SV2-G03ZC |
— | ||
|
3
|
3
06350-SV2-G03ZA
Cylinder set
|
06350-SV2-G03ZA |
— | ||
|
4
|
4
35100-SV2-G04
Lock assy
|
35100-SV2-G04 |
— | ||
|
5
|
5
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
6
|
6
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
7
|
7
35108-SV4-A01
Holder
|
35108-SV4-A01 |
— | ||
|
10
|
10
35113-SV4-Q01
Key
|
35113-SV4-Q01 |
— | ||
|
11
|
11
35113-SX0-G02 KeyBLANK (MAIN) (BLACK) (IMMOBILIZER) |
35113-SX0-G02 |
US $47.23 |
||
|
13
|
13
35114-SX0-G02 KeyBLANK (SUB) (GRAY) (IMMOBILIZER) |
35114-SX0-G02 |
US $47.23 |
||
|
14
|
14
35130-S30-003
Switch comp
|
35130-S30-003 |
— | ||
|
15
|
15
35251-SW5-003
Body
|
35251-SW5-003 |
— | ||
|
16
|
16
35254-SV4-A53
Cord assy
|
35254-SV4-A53 |
— | ||
|
17
|
17
35255-SX0-G01
Switch assy
|
35255-SX0-G01 |
— | ||
|
18
|
18
35256-SM4-G71
Switch assy
|
35256-SM4-G71 |
— | ||
|
19
|
19
35400-SL4-013 Switch assyDOOR |
35400-SL4-013 |
US $30.29 |
||
|
20
|
20
35401-SL4-003 CoverDOOR SWITCH |
35401-SL4-003 |
from US $4.62 |
||
|
21
|
21
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
22
|
22
38010-SV5-G00
Keyless & transmitter set
|
38010-SV5-G00 |
— | ||
|
23
|
23
39731-SV2-G00
Bracket
|
39731-SV2-G00 |
— | ||
|
24
|
24
72148-SR3-000 Battery comp.CR1220 |
72148-SR3-000 |
US $7.42 |
||
|
25
|
25
72148-SV5-G01
Control unit
|
72148-SV5-G01 |
— | ||
|
26
|
26
90351-SR3-000
O-ring
|
90351-SR3-000 |
— | ||
|
27
|
27
90352-SR3-000 ScrewFLAT |
90352-SR3-000 |
US $1.40 |
||
|
28
|
28
90665-SM4-000 GrommetSCREW, 4MM (YELLOW) |
90665-SM4-000 |
US $1.26 |
||
|
29
|
29
90690-SA0-003 StrapWIRE HARNESS, 25MM (BLACK) |
90690-SA0-003 |
from US $9.60 |
||
|
30
|
30
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
31
|
31
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
32
|
32
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
||
|
33
|
33
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
34
|
34
95801-060-120-8 BoltFLANGE, 6X12 |
95801-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
34
|
34
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
