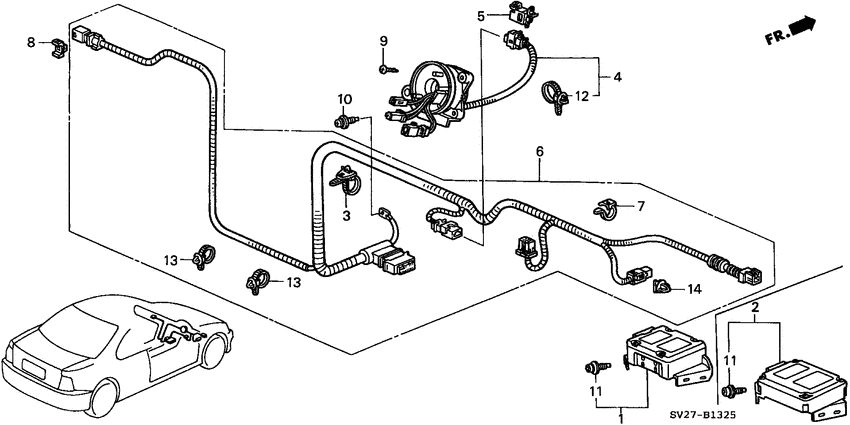

Srs unit ('96-; KE) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0I
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06772-SV2-G70
Srs unit kit
|
06772-SV2-G70 |
— | ||
|
2
|
2
06772-SV2-G90
Srs unit kit
|
06772-SV2-G90 |
— | ||
|
3
|
3
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
4
|
4
77900-SV4-G82
Reel assy
|
77900-SV4-G82 |
— | ||
|
4
|
4
77900-SV4-G81
Reel assy
|
77900-SV4-G81 |
— | ||
|
5
|
5
77907-SW5-003
Holder
|
77907-SW5-003 |
— | ||
|
6
|
6
77961-SV4-J82
Harness
|
77961-SV4-J82 |
— | ||
|
7
|
7
77963-SV4-A01 ClipSRS HARNESS (BLUE) (153MM) |
77963-SV4-A01 |
US $2.10 |
||
|
8
|
8
77982-S04-N81 HolderCOUPLER (2P) |
77982-S04-N81 |
US $2.52 |
||
|
9
|
9
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
9
|
9
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
10
|
10
90137-SG0-A81 BoltTORX EARTH, 6X16 |
90137-SG0-A81 |
US $2.24 |
||
|
11
|
11
90138-SL0-A81 BoltTORX, 6X25 |
90138-SL0-A81 |
US $2.03 |
||
|
12
|
12
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
12
|
12
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
13
|
13
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
14
|
14
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
