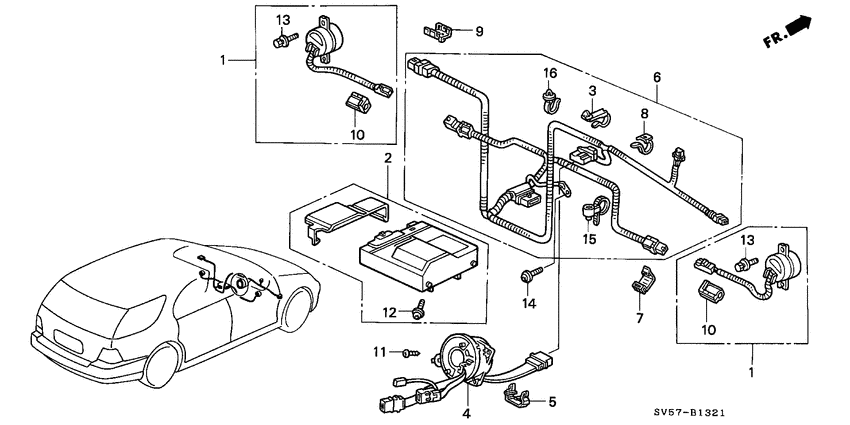

Srs unit ('94; RH) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 5
- grade
- VTI
- area code
- KQ
- right-hand drive
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06771-SV1-A80 Sensor kitDASH |
06771-SV1-A80 |
US $256 |
||
|
2
|
2
06772-SV4-A60
Srs unit kit
|
06772-SV4-A60 |
— | ||
|
3
|
3
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
4
|
4
77900-SM5-A01
Reel assy
|
77900-SM5-A01 |
— | ||
|
5
|
5
77907-SL4-N81 HolderCONNECTOR (5P) (SKY BLUE) |
77907-SL4-N81 |
US $4.13 |
||
|
6
|
6
77961-SV4-900
Harness
|
77961-SV4-900 |
— | ||
|
7
|
7
77963-SL4-N81 HolderCONNECTOR (2P) |
77963-SL4-N81 |
US $6.30 |
||
|
8
|
8
77963-SV4-A01 ClipSRS HARNESS (BLUE) (153MM) |
77963-SV4-A01 |
US $2.10 |
||
|
10
|
10
78965-SR3-A81 JointCONNECTOR (YELLOW) |
78965-SR3-A81 |
US $4.62 |
||
|
11
|
11
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
11
|
11
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
12
|
12
90134-SG0-A81 BoltTORX, 6X16 |
90134-SG0-A81 |
US $2.24 |
||
|
13
|
13
90134-SL4-N81 BoltFLANGE, 8X16 |
90134-SL4-N81 |
US $2.66 |
||
|
14
|
14
90137-SG0-A81 BoltTORX EARTH, 6X16 |
90137-SG0-A81 |
US $2.24 |
||
|
15
|
15
91543-SM4-003
Clip
|
91543-SM4-003 |
— | ||
|
16
|
16
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
