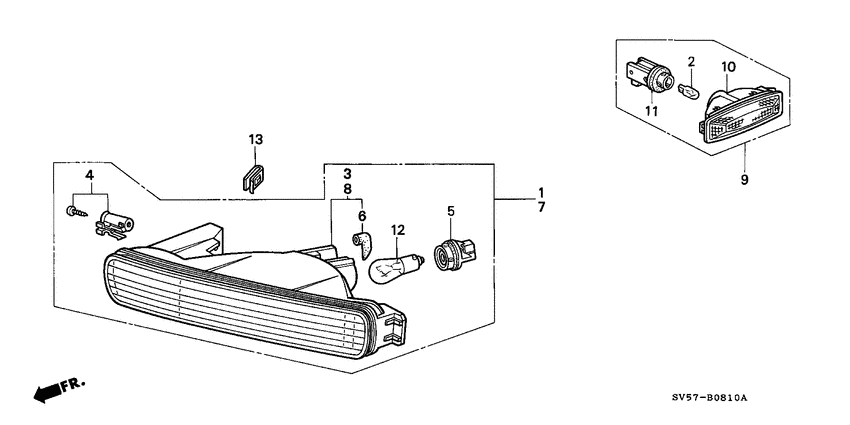

Front combination light Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD AERODECK
- Sales region
- General
- Engine
- F22B
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.2IES
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
3
|
3
33302-SV4-A02
Lamp unit, R.
|
33302-SV4-A02 |
— | ||
|
4
|
4
33303-SM4-003
Holder
|
33303-SM4-003 |
— | ||
|
5
|
5
33305-SH3-A01
Socket comp
|
33305-SH3-A01 |
— | ||
|
6
|
6
33305-SM4-A01
Tube
|
33305-SM4-A01 |
— | ||
|
8
|
8
33352-SV4-A02
Lamp unit, L.
|
33352-SV4-A02 |
— | ||
|
9
|
9
33800-SV4-Q01
Light assy
|
33800-SV4-Q01 |
— | ||
|
10
|
10
33802-SV4-Q01 Lamp unit |
33802-SV4-Q01 |
US $22.91 |
||
|
11
|
11
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
12
|
12
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
13
|
13
90105-SV4-000 NutFR. COMBINATION LIGHT |
90105-SV4-000 |
from US $2 |
