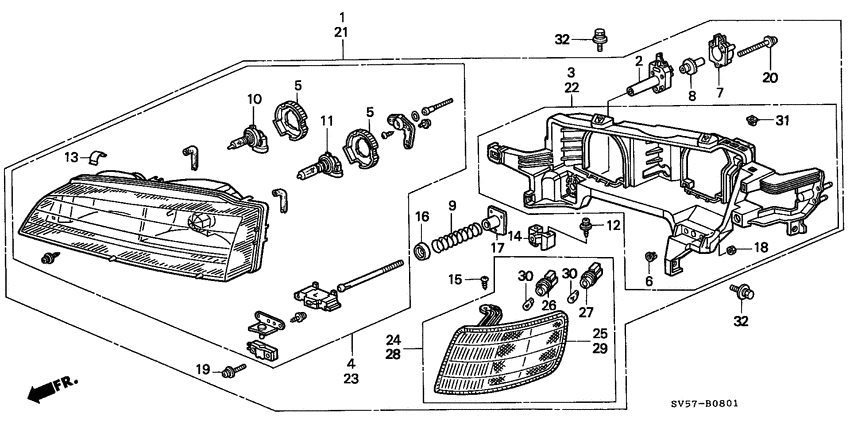

Headlight (Y) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD WAGON
- Sales region
- General
- Engine
- F22B
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.2EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
- auto cruise
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- central south america
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-SV4-A02
Headlight assy
|
33100-SV4-A02 |
— | ||
|
2
|
2
33101-SM4-A01
Holder c
|
33101-SM4-A01 |
— | ||
|
3
|
3
33102-SV4-A01
Housing comp
|
33102-SV4-A01 |
— | ||
|
4
|
4
33103-SV4-A01
Headlight unit
|
33103-SV4-A01 |
— | ||
|
5
|
5
33104-SV4-A01
Holder
|
33104-SV4-A01 |
— | ||
|
6
|
6
33105-SM4-A01
Nut b
|
33105-SM4-A01 |
— | ||
|
7
|
7
33109-SM4-A01
Holder b
|
33109-SM4-A01 |
— | ||
|
8
|
8
33111-SM4-A01
Nut c
|
33111-SM4-A01 |
— | ||
|
9
|
9
33114-SM4-A01
Spring
|
33114-SM4-A01 |
— | ||
|
10
|
10
33115-SV4-A01 BulbHEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
33115-SV4-A01 |
US $19.20 |
||
|
10
|
10
33115-SH3-A01 BulbHEADLIGHT (HB3) (12V 60W) (STANLEY) |
33115-SH3-A01 |
US $19.20 |
||
|
11
|
11
33116-SH3-A01 BulbHEADLIGHT (HB4) (12V 51W) (STANLEY) |
33116-SH3-A01 |
US $19.20 |
||
|
11
|
11
33116-SV4-A01 BulbHEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
33116-SV4-A01 |
US $19.20 |
||
|
12
|
12
33116-SM4-A01
Screw
|
33116-SM4-A01 |
— | ||
|
13
|
13
33117-SM4-003 ClipLENS HOLDER |
33117-SM4-003 |
US $2.10 |
||
|
14
|
14
33119-SS0-A01
Nut d
|
33119-SS0-A01 |
— | ||
|
15
|
15
33122-SM4-003
Screw
|
33122-SM4-003 |
— | ||
|
16
|
16
33123-SM4-A01
Holder e
|
33123-SM4-A01 |
— | ||
|
17
|
17
33124-SM4-A01
Bracket
|
33124-SM4-A01 |
— | ||
|
18
|
18
33125-SM4-A01
Nut
|
33125-SM4-A01 |
— | ||
|
19
|
19
33126-SM4-A01
Screw
|
33126-SM4-A01 |
— | ||
|
20
|
20
33127-SM4-A01
Screw
|
33127-SM4-A01 |
— | ||
|
21
|
21
33150-SV4-A02
Headlight assy
|
33150-SV4-A02 |
— | ||
|
22
|
22
33152-SV4-A01
Housing comp
|
33152-SV4-A01 |
— | ||
|
23
|
23
33153-SV4-A01
Headlight unit
|
33153-SV4-A01 |
— | ||
|
24
|
24
34300-SV4-A02
Light assy
|
34300-SV4-A02 |
— | ||
|
25
|
25
34301-SV4-A02
Lamp unit
|
34301-SV4-A02 |
— | ||
|
26
|
26
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
27
|
27
34305-SH3-A01
Socket comp
|
34305-SH3-A01 |
— | ||
|
28
|
28
34350-SV4-A02
Light assy
|
34350-SV4-A02 |
— | ||
|
29
|
29
34351-SV4-A02
Lamp unit
|
34351-SV4-A02 |
— | ||
|
30
|
30
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
31
|
31
90302-SM4-003 Nut aSPECIAL |
90302-SM4-003 |
US $1.54 |
||
|
32
|
32
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
US $0.59 |
