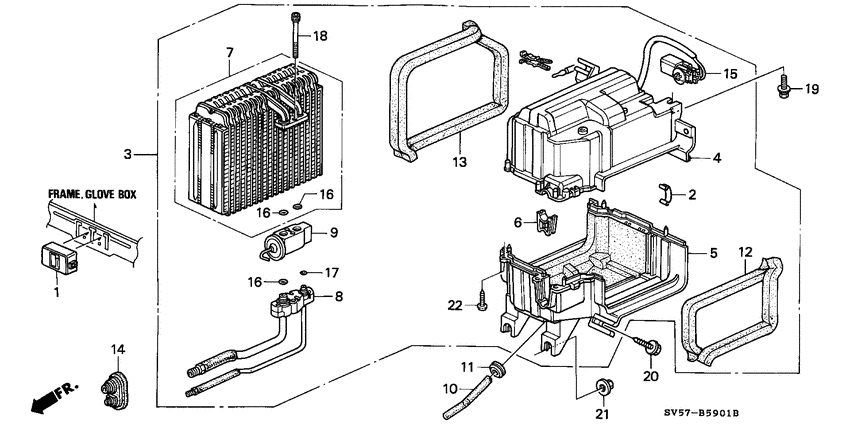

Air conditioner (UNIT; RH) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD AERODECK
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.0IES
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
- air conditioner (manual)
- +
- headlight washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37740-P0H-A02
Timer
|
37740-P0H-A02 |
— | ||
|
2
|
2
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
3
|
3
80200-SV4-003
Cooling unit
|
80200-SV4-003 |
— | ||
|
4
|
4
80201-SV4-003
Case
|
80201-SV4-003 |
— | ||
|
5
|
5
80202-SV4-003
Case
|
80202-SV4-003 |
— | ||
|
6
|
6
80208-SV4-003 HolderPIPE |
80208-SV4-003 |
US $7 |
||
|
7
|
7
80211-SV4-003
Evaporator comp.
|
80211-SV4-003 |
— | ||
|
8
|
8
80212-SV4-003
Pipe assy.
|
80212-SV4-003 |
— | ||
|
9
|
9
80220-SV4-003
Valve assy.
|
80220-SV4-003 |
— | ||
|
10
|
10
80271-SV4-000 HoseDRAIN |
80271-SV4-000 |
US $3.78 |
||
|
11
|
11
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
12
|
12
80286-SV4-003
Seal
|
80286-SV4-003 |
— | ||
|
13
|
13
80287-SV4-003
Seal
|
80287-SV4-003 |
— | ||
|
14
|
14
80380-SM4-G00
Grommet
|
80380-SM4-G00 |
— | ||
| replacement | |||||
|
14
|
14
80380-SF4-000
Grommet
|
80380-SF4-000 |
— | ||
|
15
|
15
80430-SV4-901
Thermostat
|
80430-SV4-901 |
— | ||
|
16
|
16
80871-SN7-003 O-ring5/8" |
80871-SN7-003 |
from US $2.66 |
||
|
17
|
17
80873-SN7-003 O-ring8MM |
80873-SN7-003 |
from US $2.44 |
||
|
18
|
18
90125-SV4-003 BoltFLANGE, 6X50 |
90125-SV4-003 |
US $2.66 |
||
|
19
|
19
90139-SH3-003
Bolt-washer
|
90139-SH3-003 |
— | ||
|
20
|
20
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
21
|
21
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
|
22
|
22
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
