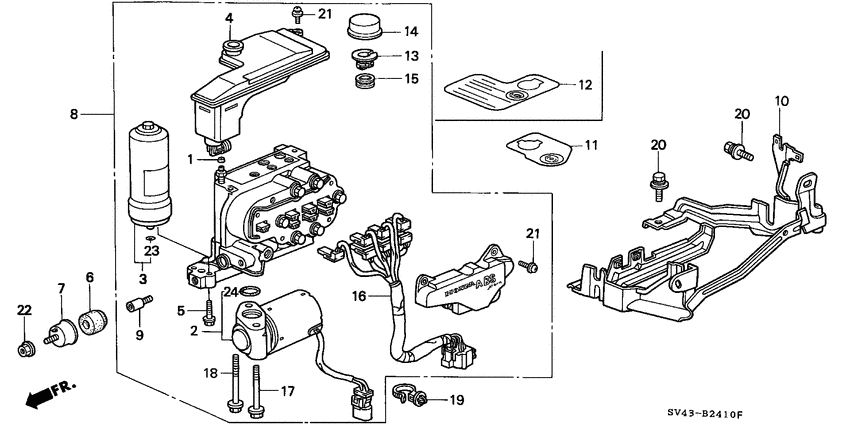

Abs modulator Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- abs
- +
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
2
|
2
57017-SV4-A02
Motor set
|
57017-SV4-A02 |
— | ||
|
3
|
3
57018-ST5-000
Accumulator set
|
57018-ST5-000 |
— | ||
|
4
|
4
57019-ST5-000
Tank set
|
57019-ST5-000 |
— | ||
|
5
|
5
57074-ST5-003
Bolt
|
57074-ST5-003 |
— | ||
|
6
|
6
57101-ST7-000
Rubber
|
57101-ST7-000 |
— | ||
|
7
|
7
57102-ST7-000
Holder
|
57102-ST7-000 |
— | ||
|
8
|
8
57110-SV1-A04
Modulator assy
|
57110-SV1-A04 |
— | ||
|
9
|
9
57112-ST5-010
Bolt
|
57112-ST5-010 |
— | ||
|
10
|
10
57115-SV4-000
Bracket
|
57115-SV4-000 |
— | ||
|
11
|
11
57119-SN7-003
Mark
|
57119-SN7-003 |
— | ||
|
13
|
13
57195-ST5-003
Cap
|
57195-ST5-003 |
— | ||
|
14
|
14
57196-ST5-003
Cap
|
57196-ST5-003 |
— | ||
|
15
|
15
57198-ST5-003
X-ring
|
57198-ST5-003 |
— | ||
|
16
|
16
57205-ST5-013
Cord comp
|
57205-ST5-013 |
— | ||
|
17
|
17
57365-ST5-003
Bolt
|
57365-ST5-003 |
— | ||
|
18
|
18
57365-SV1-A01
Bolt
|
57365-SV1-A01 |
— | ||
|
18
|
18
57365-ST5-003
Bolt
|
57365-ST5-003 |
— | ||
|
19
|
19
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
19
|
19
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
20
|
20
93407-080-160-8 Bolt-washer8X16 |
93407-080-160-8 |
US $0.74 |
||
|
21
|
21
93891-050-141-8 Screw-washer5X14 |
93891-050-141-8 |
from US $0.44 |
||
| replacement | |||||
|
21
|
21
93891-050-140-8 Screw-washer5X14 |
93891-050-140-8 |
from US $0.44 |
||
|
22
|
22
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
23
|
23
57072-ST5-003 O-ringP5 |
57072-ST5-003 |
US $1.55 |
||
|
24
|
24
57315-ST5-003
O-ring
|
57315-ST5-003 |
— | ||
