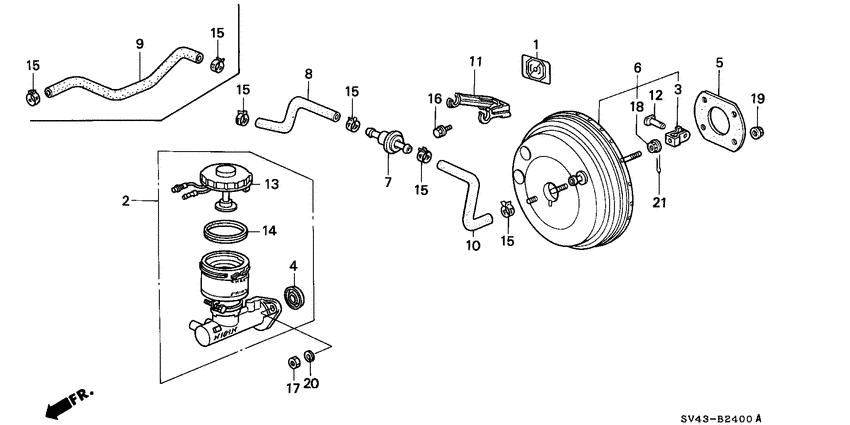

Master power Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- abs
- +
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46070-SL0-G01 PlateSYMBOL MARK |
46070-SL0-G01 |
US $1.61 |
||
|
2
|
2
46100-SM4-G54
Cylinder assy.
|
46100-SM4-G54 |
— | ||
|
3
|
3
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
4
|
4
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
5
|
5
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
6
|
6
46400-SV4-A51
Power assy.
|
46400-SV4-A51 |
— | ||
|
7
|
7
46403-SE0-003
Valve comp.
|
46403-SE0-003 |
— | ||
|
8
|
8
46404-SV4-A00
Tube a
|
46404-SV4-A00 |
— | ||
|
10
|
10
46405-SV4-A00
Tube b
|
46405-SV4-A00 |
— | ||
|
11
|
11
46407-SV4-A00
Clamp
|
46407-SV4-A00 |
— | ||
|
12
|
12
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
13
|
13
46662-SM4-003 Cap comp.RESERVE TANK |
46662-SM4-003 |
US $47.74 |
||
|
14
|
14
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
|
15
|
15
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.62 |
||
|
16
|
16
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
17
|
17
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
19
|
19
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
20
|
20
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
21
|
21
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
