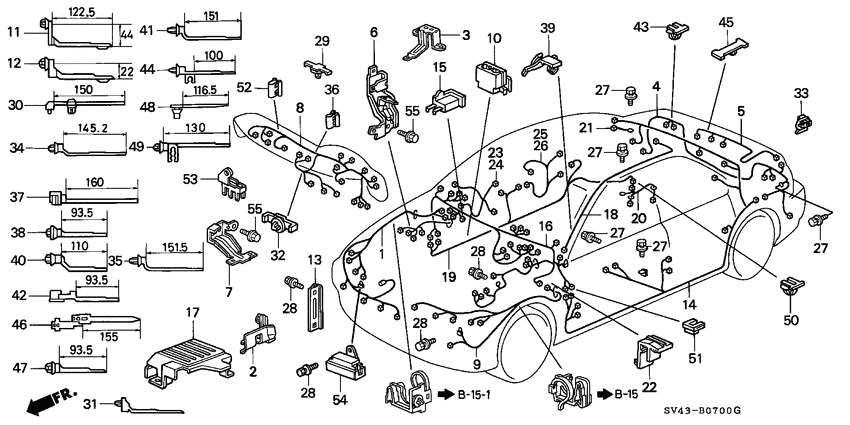

Wire harness Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX
- abs
- +
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SV4-P10
Harness
|
32100-SV4-P10 |
— | ||
|
4
|
4
32108-SV4-B02
Harness
|
32108-SV4-B02 |
— | ||
|
6
|
6
32112-P0A-A00
Stay comp
|
32112-P0A-A00 |
— | ||
|
8
|
8
32117-SV4-B05
Harness
|
32117-SV4-B05 |
— | ||
|
9
|
9
32120-SV4-P10
Harness
|
32120-SV4-P10 |
— | ||
|
10
|
10
32131-SV4-003 CapCOUPLER (CP 2P, 3P) |
32131-SV4-003 |
US $4.90 |
||
|
11
|
11
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
12
|
12
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
14
|
14
32140-SV4-B02
Harness
|
32140-SV4-B02 |
— | ||
|
15
|
15
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
16
|
16
32150-SV4-B06
Harness
|
32150-SV4-B06 |
— | ||
|
19
|
19
32160-SV4-A23
Harness
|
32160-SV4-A23 |
— | ||
|
20
|
20
32170-SV4-000
Cord
|
32170-SV4-000 |
— | ||
|
21
|
21
32202-SV4-000
Cord
|
32202-SV4-000 |
— | ||
|
22
|
22
32312-SM4-013 HolderCOUPLER |
32312-SM4-013 |
US $4.34 |
||
|
23
|
23
32751-SV4-A13
Harness
|
32751-SV4-A13 |
— | ||
|
24
|
24
32752-SV4-A12
Harness
|
32752-SV4-A12 |
— | ||
|
25
|
25
32753-SV4-010
Harness
|
32753-SV4-010 |
— | ||
|
26
|
26
32754-SV4-010
Harness
|
32754-SV4-010 |
— | ||
|
27
|
27
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
28
|
28
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
32
|
32
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
33
|
33
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.78 |
||
|
34
|
34
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
40
|
40
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
41
|
41
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
42
|
42
91552-SS0-003 ClipWIRE HARNESS (M5) (BROWN) (93.5MM) |
91552-SS0-003 |
US $3.51 |
||
|
43
|
43
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
44
|
44
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
45
|
45
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
46
|
46
91559-ST5-003 ClipHARNESS BAND OFFSET(30) (NATURAL) |
91559-ST5-003 |
US $1.96 |
||
|
49
|
49
91571-S10-003 ClipWIRE HARNESS (NATURAL) (130MM) |
91571-S10-003 |
US $1.89 |
||
|
51
|
51
91587-SM4-003
Clip
|
91587-SM4-003 |
— | ||
|
52
|
52
91651-SV1-A00 ClipCORD (15MM) |
91651-SV1-A00 |
US $2.24 |
||
|
54
|
54
91786-SR3-003 BarJOINT (10P) |
91786-SR3-003 |
US $6.72 |
||
|
55
|
55
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
