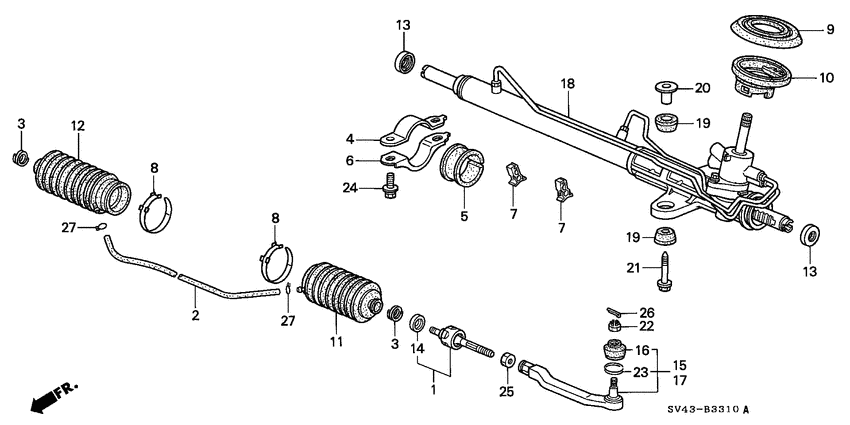

Power steering gear box Diagram Honda ACCORD
- Year
- 1995
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- abs
- +
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53010-SV4-000 End setRACK |
53010-SV4-000 |
US $46.59 |
||
|
2
|
2
53411-SV4-000
Tube
|
53411-SV4-000 |
— | ||
|
3
|
3
53434-SD9-000 ClipTIE ROD |
53434-SD9-000 |
from US $2.38 |
||
| replacement | |||||
|
3
|
3
53434-S04-J51 CLIP, TIE ROD |
53434-S04-J51 |
from US $3.60 |
||
|
4
|
4
53434-SV4-010 Bracket dGEAR BOX |
53434-SV4-010 |
US $6.07 |
||
|
5
|
5
53436-SV4-000
Cushion b
|
53436-SV4-000 |
— | ||
|
6
|
6
53438-SV4-010
Bracket b
|
53438-SV4-010 |
— | ||
|
7
|
7
53447-ST0-003
Clip
|
53447-ST0-003 |
— | ||
|
8
|
8
53449-SL0-A00
Band b
|
53449-SL0-A00 |
— | ||
| replacement | |||||
|
8
|
8
53449-S04-J51 Band bBELLOWS |
53449-S04-J51 |
US $6.67 |
||
|
9
|
9
53501-SV4-000
Grommet a
|
53501-SV4-000 |
— | ||
|
10
|
10
53502-SV4-000
Grommet b
|
53502-SV4-000 |
— | ||
|
11
|
11
53534-SV1-N01
Dust seal comp.
|
53534-SV1-N01 |
— | ||
| replacement | |||||
|
11
|
11
53534-SV4-N01 Dust seal comp.TIE ROD |
53534-SV4-N01 |
US $18.22 |
||
|
12
|
12
53534-SV1-003
Dust seal comp.
|
53534-SV1-003 |
— | ||
|
13
|
13
53535-SV1-003
Washer
|
53535-SV1-003 |
— | ||
|
14
|
14
53536-SB2-000 WasherTIE ROD LOCK |
53536-SB2-000 |
US $4.07 |
||
|
15
|
15
53540-SV4-003
End comp
|
53540-SV4-003 |
— | ||
| replacement | |||||
|
15
|
15
53540-SV4-013
End comp
|
53540-SV4-013 |
— | ||
|
16
|
16
53546-SA0-003 BootTIE ROD END (MUSASHI) |
53546-SA0-003 |
US $13.44 |
||
|
17
|
17
53560-SV4-003 End compL. TIE ROD |
53560-SV4-003 |
US $18.22 |
||
| replacement | |||||
|
17
|
17
53560-SV4-013
End comp
|
53560-SV4-013 |
— | ||
|
18
|
18
53601-SV4-A01 Box assyPOWER STEERING GEAR |
53601-SV4-A01 |
US $1,118.72 |
||
|
19
|
19
53685-SV4-A00 BushSTEERING GEAR BOX MOUNTING |
53685-SV4-A00 |
US $3.15 |
||
|
20
|
20
53686-SL5-000 CollarGEAR BOX MOUNTING |
53686-SL5-000 |
US $7 |
||
|
21
|
21
90108-SH3-003 BoltGEAR BOX MOUNTING (10X55) |
90108-SH3-003 |
US $3.77 |
||
|
22
|
22
90320-SF1-000 NutCASTLE, 10MM |
90320-SF1-000 |
US $4.44 |
||
|
23
|
23
90683-SF1-003 CirclipFR. UPPER (MUSASHI) |
90683-SF1-003 |
US $4.06 |
||
|
24
|
24
93412-100-250-8 Bolt-washer10X25 |
93412-100-250-8 |
US $0.81 |
||
|
25
|
25
94002-142-800-S NUT, HEX., 14MM |
94002-142-800-S |
US $0.74 |
||
|
26
|
26
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
26
|
26
94201-29220
Pin
|
94201-29220 |
— | ||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
from US $0.49 |
||
|
27
|
27
95002-02074 ClipTUBE (B7) |
95002-02074 |
US $0.44 |
||
