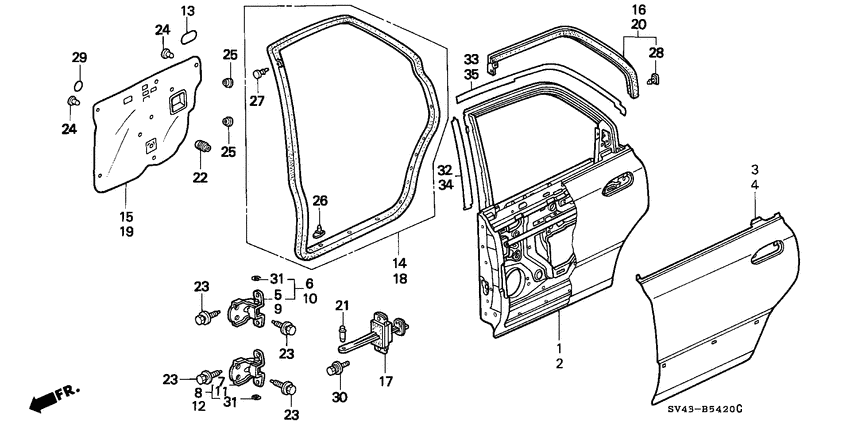

Rear door panels Diagram Honda ACCORD
- Year
- 1995
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- abs
- +
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67510-SV4-A01ZZ
Panel comp
|
67510-SV4-A01ZZ |
— | ||
|
2
|
2
67550-SV4-A01ZZ
Panel comp
|
67550-SV4-A01ZZ |
— | ||
|
3
|
3
67611-SV4-A00ZZ
Skin
|
67611-SV4-A00ZZ |
— | ||
|
4
|
4
67651-SV4-A00ZZ
Skin
|
67651-SV4-A00ZZ |
— | ||
|
5
|
5
67910-SV1-A02ZZ
Hinge
|
67910-SV1-A02ZZ |
— | ||
|
7
|
7
67920-SV1-A02ZZ
Hinge
|
67920-SV1-A02ZZ |
— | ||
|
9
|
9
67950-SV1-A02ZZ
Hinge
|
67950-SV1-A02ZZ |
— | ||
|
11
|
11
67960-SV1-A02ZZ
Hinge
|
67960-SV1-A02ZZ |
— | ||
|
13
|
13
70562-679-000 SealBACK PANEL HOLE |
70562-679-000 |
US $2.73 |
||
|
14
|
14
72810-SV4-013
Weatherstrip
|
72810-SV4-013 |
— | ||
|
15
|
15
72821-SV1-A11
Seal
|
72821-SV1-A11 |
— | ||
|
16
|
16
72825-SV4-013
Sub seal
|
72825-SV4-013 |
— | ||
|
17
|
17
72840-SV1-000 Checker comp.RR. DOOR |
72840-SV1-000 |
US $45.06 |
||
|
18
|
18
72850-SV4-013
Weatherstrip
|
72850-SV4-013 |
— | ||
|
19
|
19
72861-SV1-A11
Seal
|
72861-SV1-A11 |
— | ||
|
20
|
20
72865-SV4-013
Sub seal
|
72865-SV4-013 |
— | ||
|
21
|
21
75760-SB2-003 PinDOOR CHECKER |
75760-SB2-003 |
US $6.19 |
||
|
22
|
22
75891-SA7-000 StopperDOOR |
75891-SA7-000 |
from US $1.70 |
||
|
23
|
23
90101-SE3-003 Bolt-washer8X23.5 |
90101-SE3-003 |
US $2.17 |
||
|
24
|
24
90686-692-003 CapLINING MOUNT |
90686-692-003 |
US $2.12 |
||
|
26
|
26
91568-SR2-003
Clip
|
91568-SR2-003 |
— | ||
| replacement | |||||
|
26
|
26
91530-SP1-003 Clip aDOOR WEATHERSTRIP |
91530-SP1-003 |
from US $1.72 |
||
|
27
|
27
91588-SV4-004 ClipDOOR WEATHERSTRIP (B) |
91588-SV4-004 |
US $1.61 |
||
|
28
|
28
91590-SV4-003 ClipSUB SEAL (A) |
91590-SV4-003 |
US $1.61 |
||
|
29
|
29
91657-SP0-000 Seal cDOOR PANEL HOLE (25MM) |
91657-SP0-000 |
from US $0.42 |
||
|
30
|
30
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
31
|
31
94540-06014 E-ring6MM |
94540-06014 |
US $1.33 |
||
