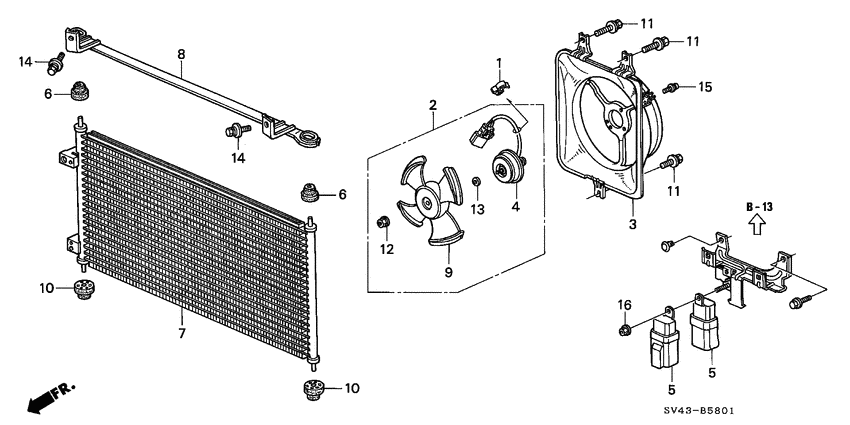

Condenser (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32175-647-920
Clip
|
32175-647-920 |
— | ||
| replacement | |||||
|
1
|
1
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
2
|
2
38610-P0G-A02
Fan assy
|
38610-P0G-A02 |
— | ||
|
3
|
3
38615-P0G-A00
Shroud comp.
|
38615-P0G-A00 |
— | ||
|
4
|
4
38616-P0G-A02
Motor
|
38616-P0G-A02 |
— | ||
|
5
|
5
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
6
|
6
80107-SS0-000 MountCONDENSER UPPER |
80107-SS0-000 |
US $4.40 |
||
|
7
|
7
80110-SV7-305
Condenser comp.
|
80110-SV7-305 |
— | ||
|
7
|
7
80110-SV7-A11
Condenser comp.
|
80110-SV7-A11 |
— | ||
|
8
|
8
80111-SV4-A00
Bracket
|
80111-SV4-A00 |
— | ||
|
9
|
9
80152-SR3-013 Fan compCOOLING (MITSUBA) |
80152-SR3-013 |
US $31.23 |
||
|
10
|
10
80175-SE0-000 MountCONDENSER |
80175-SE0-000 |
from US $3.91 |
||
|
11
|
11
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
12
|
12
90041-PD2-004
Nut
|
90041-PD2-004 |
— | ||
| replacement | |||||
|
12
|
12
90311-MB6-003 Nut toothed 5mm |
90311-MB6-003 |
from US $3.09 |
||
|
13
|
13
90403-PM3-004
Washer
|
90403-PM3-004 |
— | ||
|
14
|
14
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
15
|
15
93893-040-080-8 Screw-washer4X8 |
93893-040-080-8 |
from US $0.52 |
||
|
16
|
16
94050-06050 NutFLANGE, 6MM |
94050-06050 |
US $0.52 |
||
