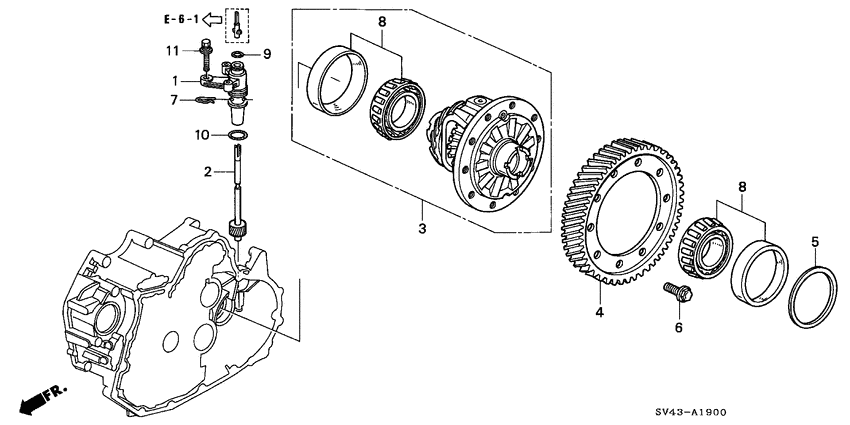

Differential gear (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23815-P0A-000 Holder comp, SPEEDOMETER GEAR |
23815-P0A-000 |
from US $32.13 |
||
|
2
|
2
23820-P0A-300 Gear compSPEEDOMETER |
23820-P0A-300 |
US $23.17 |
||
|
3
|
3
41100-P0Z-305 Differential comp. |
41100-P0Z-305 |
US $385.28 |
||
|
4
|
4
41233-P0Z-000 GearFINAL DRIVEN |
41233-P0Z-000 |
US $253.44 |
||
|
5
|
5
41397-PG4-000
Shim q
|
41397-PG4-000 |
— | ||
|
5
|
5
41392-PG4-000
Shim l
|
41392-PG4-000 |
— | ||
|
5
|
5
41387-PG4-000
Shim g
|
41387-PG4-000 |
— | ||
|
5
|
5
41382-PG4-000
Shim b
|
41382-PG4-000 |
— | ||
|
5
|
5
41394-PG4-000
Shim n
|
41394-PG4-000 |
— | ||
|
5
|
5
41389-PG4-000
Shim i
|
41389-PG4-000 |
— | ||
|
5
|
5
41384-PG4-000
Shim d
|
41384-PG4-000 |
— | ||
|
5
|
5
41396-PG4-000
Shim p
|
41396-PG4-000 |
— | ||
|
5
|
5
41391-PG4-000
Shim k
|
41391-PG4-000 |
— | ||
|
5
|
5
41386-PG4-000
Shim f
|
41386-PG4-000 |
— | ||
|
5
|
5
41381-PG4-000
Shim a
|
41381-PG4-000 |
— | ||
|
5
|
5
41393-PG4-000
Shim m
|
41393-PG4-000 |
— | ||
|
5
|
5
41388-PG4-000
Shim h
|
41388-PG4-000 |
— | ||
|
5
|
5
41383-PG4-000
Shim c
|
41383-PG4-000 |
— | ||
|
5
|
5
41395-PG4-000
Shim o
|
41395-PG4-000 |
— | ||
|
5
|
5
41390-PG4-000
Shim j
|
41390-PG4-000 |
— | ||
|
5
|
5
41385-PG4-000
Shim e
|
41385-PG4-000 |
— | ||
|
6
|
6
90003-PA9-003 BoltFLANGE, 10MM |
90003-PA9-003 |
US $2.24 |
||
|
7
|
7
90638-689-000 ClipSPEEDOMETER GEAR |
90638-689-000 |
US $3.27 |
||
|
8
|
8
91006-PG4-003 BearingSPECIAL TAPER, 40X80X19.75 |
91006-PG4-003 |
US $20.48 |
||
|
9
|
9
91304-PT0-000 O-ring14.8X1.9 |
91304-PT0-000 |
from US $2.21 |
||
|
10
|
10
91313-611-010 O-ring23.5X2 |
91313-611-010 |
US $4.40 |
||
|
11
|
11
93403-080-300-8 Bolt-washer8X30 |
93403-080-300-8 |
US $0.81 |
