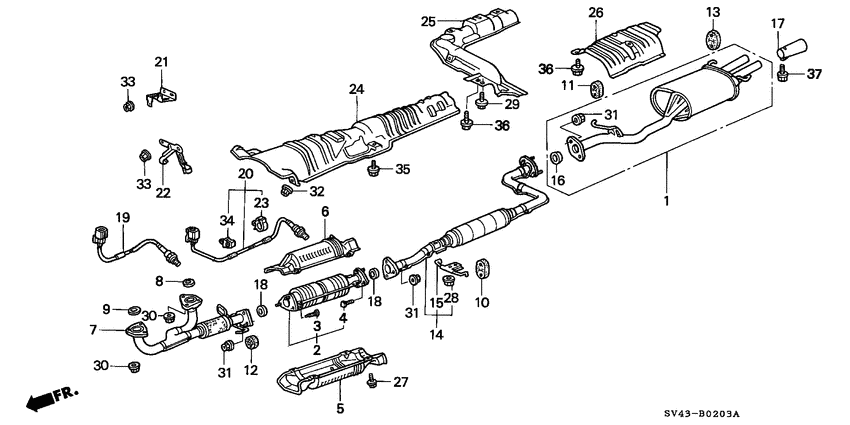

Exhaust pipe (4) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18030-SV7-C00
Silencer set
|
18030-SV7-C00 |
— | ||
|
2
|
2
18160-P0G-A00
Converter comp.
|
18160-P0G-A00 |
— | ||
|
3
|
3
18176-PT0-003 BoltCONVERTER |
18176-PT0-003 |
US $9.61 |
||
|
4
|
4
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
from US $9.12 |
||
|
5
|
5
18181-P0G-A00
Cover
|
18181-P0G-A00 |
— | ||
|
6
|
6
18182-P0G-A00
Cover
|
18182-P0G-A00 |
— | ||
|
7
|
7
18210-SV7-A00
Pipe a
|
18210-SV7-A00 |
— | ||
|
8
|
8
18212-SA7-003 GasketEX. PIPE (ISHINO) |
18212-SA7-003 |
from US $5.37 |
||
|
9
|
9
18212-671-003 GasketEX. PIPE(ISHINO) (59.5MM-60.5MM) |
18212-671-003 |
US $7.98 |
||
|
10
|
10
18215-SE0-000 Rubber dEX. PIPE MOUNTING |
18215-SE0-000 |
US $6.44 |
||
|
11
|
11
18215-SA7-000 RubberSILENCER MOUNTING (70X45X25) |
18215-SA7-000 |
US $9.95 |
||
|
12
|
12
18215-SE0-G00 RubberEX. PIPE MOUNTING (60X50X20) |
18215-SE0-G00 |
from US $6.72 |
||
|
13
|
13
18215-SV4-000 RubberEX. MOUNTING |
18215-SV4-000 |
US $8.70 |
||
|
14
|
14
18220-SV7-C01
Pipe b
|
18220-SV7-C01 |
— | ||
|
15
|
15
18222-SV4-L90
Bracket
|
18222-SV4-L90 |
— | ||
|
16
|
16
18303-SM4-020 GasketSILENCER |
18303-SM4-020 |
from US $5.32 |
||
|
17
|
17
18310-SB0-023
Finisher
|
18310-SB0-023 |
— | ||
|
18
|
18
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
19
|
19
36531-P0G-A01
Sensor
|
36531-P0G-A01 |
— | ||
|
20
|
20
36532-P0G-A02
Sensor
|
36532-P0G-A02 |
— | ||
|
21
|
21
36536-P0G-A00
Stay b
|
36536-P0G-A00 |
— | ||
|
22
|
22
36537-P0G-A00
Stay c
|
36537-P0G-A00 |
— | ||
|
23
|
23
36538-P0G-A01
Clip
|
36538-P0G-A01 |
— | ||
|
24
|
24
74601-SV4-V80
Plate
|
74601-SV4-V80 |
— | ||
|
25
|
25
74651-SV4-V50
Plate
|
74651-SV4-V50 |
— | ||
|
26
|
26
74655-SV4-V50 PlateSILENCER BAFFLE |
74655-SV4-V50 |
US $31.23 |
||
|
27
|
27
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
27
|
27
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
from US $2.96 |
||
|
28
|
28
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
29
|
29
90126-SS0-000 Bolt-washer6X16 |
90126-SS0-000 |
US $1.26 |
||
|
30
|
30
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $3.40 |
||
|
31
|
31
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
32
|
32
90301-SV7-000 NutPAINT CUTTING, 6MM |
90301-SV7-000 |
US $1.61 |
||
|
33
|
33
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
34
|
34
91508-SA4-003 ClipWIRE HARNESS (BLACK) |
91508-SA4-003 |
from US $2.73 |
||
|
35
|
35
93405-060-120-5 Bolt-washer6X12 |
93405-060-120-5 |
US $0.59 |
||
|
36
|
36
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
37
|
37
95801-060-140-0 BoltFLANGE, 6X14 |
95801-060-140-0 |
US $0.52 |
||
| replacement | |||||
|
37
|
37
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
