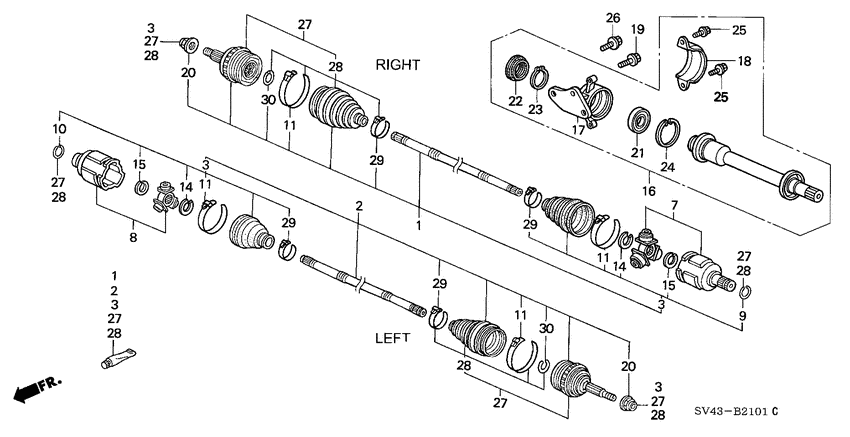

Front driveshaft (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SV7-A60
Driveshaft set
|
44010-SV7-A60 |
— | ||
|
2
|
2
44011-SV7-A60
Driveshaft set
|
44011-SV7-A60 |
— | ||
|
3
|
3
44017-SV7-000
Boot set
|
44017-SV7-000 |
— | ||
|
3
|
3
44017-SM4-A00 Boot setINBOARD |
44017-SM4-A00 |
US $58.88 |
||
|
7
|
7
44310-SV7-A00
Joint comp
|
44310-SV7-A00 |
— | ||
|
8
|
8
44310-SV7-A10
Joint comp
|
44310-SV7-A10 |
— | ||
|
9
|
9
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
10
|
10
44319-S1K-300
Set ring
|
44319-S1K-300 |
— | ||
|
11
|
11
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
14
|
14
44336-SM1-300
Ring a
|
44336-SM1-300 |
— | ||
|
15
|
15
44338-SM1-300 Circlip26MM |
44338-SM1-300 |
US $2.45 |
||
|
16
|
16
44500-SV7-A00
Shaft assy
|
44500-SV7-A00 |
— | ||
|
17
|
17
44511-SV7-A00
Support
|
44511-SV7-A00 |
— | ||
|
18
|
18
44517-SV7-A00 CoverHEAT |
44517-SV7-A00 |
US $6.72 |
||
|
19
|
19
90102-SD4-000
Bolt
|
90102-SD4-000 |
— | ||
|
20
|
20
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
US $7 |
||
|
21
|
21
91057-SH3-008 BearingHALF SHAFT (NTN) |
91057-SH3-008 |
from US $14.28 |
||
|
22
|
22
91260-SK7-014 SealHALF SHAFT OUTER (ARAI) |
91260-SK7-014 |
US $9.94 |
||
|
22
|
22
91260-SK7-013 SealHALF SHAFT OUTER (NOK) |
91260-SK7-013 |
US $9.38 |
||
|
23
|
23
94510-38000 CirclipEXTERNAL, 38MM |
94510-38000 |
from US $1.04 |
||
|
24
|
24
94520-58000 CirclipINTERNAL, 58MM |
94520-58000 |
from US $0.43 |
||
|
25
|
25
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
26
|
26
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
|
27
|
27
44014-S84-A51 Joint setOUTBOARD |
44014-S84-A51 |
US $360.96 |
||
|
28
|
28
44018-S84-C00 Boot setOUTBOARD |
44018-S84-C00 |
US $69.76 |
||
|
29
|
29
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
30
|
30
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
from US $1.75 |
