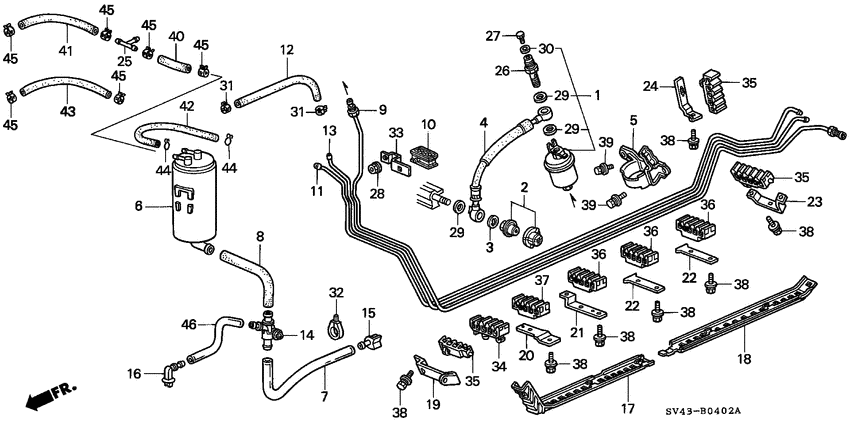

Fuel pipe (3) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-932
Strainer set
|
16010-ST5-932 |
— | ||
|
2
|
2
16680-PE7-661
Damper assy.
|
16680-PE7-661 |
— | ||
| replacement | |||||
|
2
|
2
16680-PCX-003 Damper assy.PULSATION |
16680-PCX-003 |
US $81.53 |
||
|
3
|
3
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
4
|
4
16722-P0G-A01
Hose comp.
|
16722-P0G-A01 |
— | ||
|
5
|
5
16918-SV7-A00
Stay
|
16918-SV7-A00 |
— | ||
|
6
|
6
17300-SV1-A31 Canister assy |
17300-SV1-A31 |
US $385.10 |
||
|
7
|
7
17357-SV7-A00
Tube
|
17357-SV7-A00 |
— | ||
|
8
|
8
17372-SV7-A00
Tube
|
17372-SV7-A00 |
— | ||
|
9
|
9
17700-SV7-A01
Pipe comp
|
17700-SV7-A01 |
— | ||
|
10
|
10
17701-SV7-A00
Rubber
|
17701-SV7-A00 |
— | ||
|
11
|
11
17720-SV7-A01
Pipe comp
|
17720-SV7-A01 |
— | ||
|
12
|
12
17723-SV1-A02
Hose
|
17723-SV1-A02 |
— | ||
|
13
|
13
17740-SV7-A01
Pipe comp
|
17740-SV7-A01 |
— | ||
|
14
|
14
17742-SV4-003 JointDRAIN TUBE (CANISTER) |
17742-SV4-003 |
US $4.62 |
||
|
15
|
15
17743-SM4-003 CapDRAIN TUBE |
17743-SM4-003 |
US $3.26 |
||
|
16
|
16
17743-SV4-003
Joint
|
17743-SV4-003 |
— | ||
|
17
|
17
17752-SV4-000 CoverFR. FUEL PIPE |
17752-SV4-000 |
US $13.82 |
||
|
18
|
18
17753-SV4-000
Cover
|
17753-SV4-000 |
— | ||
|
19
|
19
17761-SV4-000
Stay a
|
17761-SV4-000 |
— | ||
|
20
|
20
17763-SV4-000
Stay c
|
17763-SV4-000 |
— | ||
|
21
|
21
17764-SV4-000
Stay d
|
17764-SV4-000 |
— | ||
|
22
|
22
17765-SV4-000
Stay e
|
17765-SV4-000 |
— | ||
|
23
|
23
17766-SV4-000
Stay f
|
17766-SV4-000 |
— | ||
|
24
|
24
17767-SV4-000
Stay g
|
17767-SV4-000 |
— | ||
|
25
|
25
36205-P0G-A01
Joint
|
36205-P0G-A01 |
— | ||
|
26
|
26
90008-P0G-A01
Bolt
|
90008-P0G-A01 |
— | ||
|
27
|
27
90009-PE2-010
Bolt
|
90009-PE2-010 |
— | ||
| replacement | |||||
|
27
|
27
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
28
|
28
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
29
|
29
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
30
|
30
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
31
|
31
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
32
|
32
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
33
|
33
91591-SV7-A00
Bracket
|
91591-SV7-A00 |
— | ||
|
34
|
34
91592-SR3-J31 Clamp hFUEL PIPE (NIFCO) |
91592-SR3-J31 |
US $2.66 |
||
|
35
|
35
91594-SR3-J31 Clamp fFUEL PIPE (NIFCO) |
91594-SR3-J31 |
US $3.22 |
||
|
36
|
36
91598-SR3-J31
Clamp d
|
91598-SR3-J31 |
— | ||
| replacement | |||||
|
36
|
36
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.54 |
||
|
37
|
37
91599-SV4-003 Clamp aFUEL PIPE |
91599-SV4-003 |
US $5.60 |
||
|
38
|
38
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
39
|
39
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
40
|
40
95001-550-605-0 HoseFUEL, 5.5X60 (95001-55001-50M) |
95001-550-605-0 |
US $2.07 |
||
|
41
|
41
95001-551-455-0 HoseFUEL, 5.5X145 (95001-55001-50M) |
95001-551-455-0 |
US $3.11 |
||
|
42
|
42
95001-551-806-0 TubeFUEL, 5.5X180 (95001-55001-60M) |
95001-551-806-0 |
US $2.07 |
||
|
44
|
44
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
45
|
45
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
46
|
46
95003-230-246-0 TubeVINYL, 8X12X240 (95003-23001-60M) |
95003-230-246-0 |
US $1.41 |
||
