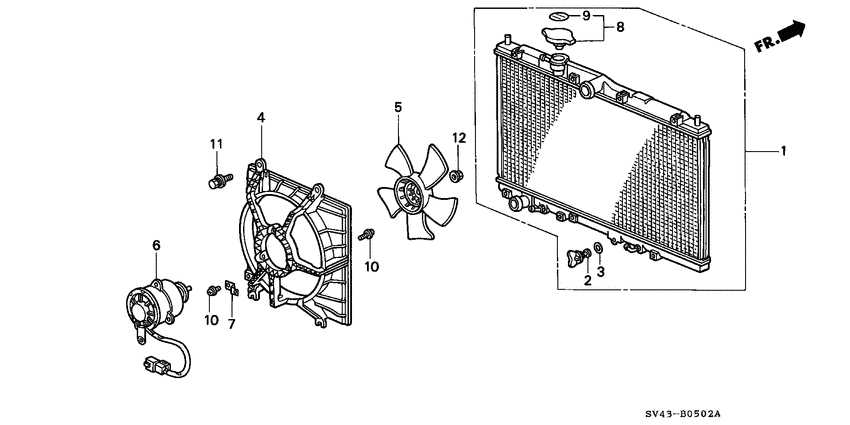

Radiator (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-P0G-A51
Radiator comp
|
19010-P0G-A51 |
— | ||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
US $1.95 |
||
|
4
|
4
19015-P0G-A01
Shroud comp.
|
19015-P0G-A01 |
— | ||
|
5
|
5
19020-P1E-003 FanCOOLING |
19020-P1E-003 |
US $44.16 |
||
|
6
|
6
19030-PT0-003 MotorCOOLING FAN (DENSO) |
19030-PT0-003 |
US $267.52 |
||
|
7
|
7
19033-P0A-003
Stay
|
19033-P0A-003 |
— | ||
|
8
|
8
19045-P08-013
Cap comp.
|
19045-P08-013 |
— | ||
| replacement | |||||
|
8
|
8
19045-PAA-A01 Cap comp.RADIATOR (DENSO) |
19045-PAA-A01 |
from US $19.86 |
||
|
9
|
9
19046-PV1-000 SealCAP |
19046-PV1-000 |
US $1.63 |
||
|
10
|
10
90041-P08-003 Screw-washer4X11 |
90041-P08-003 |
US $1.82 |
||
|
11
|
11
90042-PM3-003
Bolt-washer
|
90042-PM3-003 |
— | ||
|
12
|
12
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $3.03 |
||
