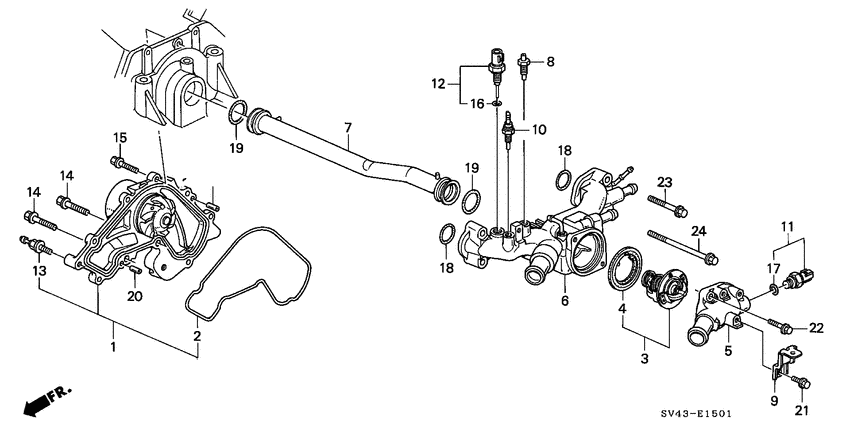

Water pump/sensor (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-P0G-A01 Pump assy.WATER |
19200-P0G-A01 |
US $241.92 |
||
|
2
|
2
19222-P0G-A01
O-ring
|
19222-P0G-A01 |
— | ||
|
3
|
3
19301-P13-305 Thermostat assy(FUJI THOMSON) |
19301-P13-305 |
US $53.31 |
||
|
3
|
3
19301-P13-306
Thermostat assy
|
19301-P13-306 |
— | ||
|
4
|
4
19305-P13-000 RubberTHERMOSTAT MOUNTING |
19305-P13-000 |
US $4.40 |
||
|
5
|
5
19311-P0G-A00
Cover
|
19311-P0G-A00 |
— | ||
|
6
|
6
19410-P0G-A00
Passage comp.
|
19410-P0G-A00 |
— | ||
|
7
|
7
19505-P0G-A00
Pipe comp
|
19505-P0G-A00 |
— | ||
|
8
|
8
19516-PC1-000 BoltBREATHING WATER |
19516-PC1-000 |
from US $5.62 |
||
|
9
|
9
32767-P0G-A00
Stay
|
32767-P0G-A00 |
— | ||
|
10
|
10
37750-PH2-014 Thermo unitDENSO |
37750-PH2-014 |
US $61.20 |
||
|
11
|
11
37760-P00-004
Switch assy
|
37760-P00-004 |
— | ||
| replacement | |||||
|
11
|
11
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $46.94 |
||
|
12
|
12
37870-PK2-005
Sensor assy
|
37870-PK2-005 |
— | ||
|
13
|
13
90015-PY3-000
Bolt
|
90015-PY3-000 |
— | ||
|
14
|
14
90049-PH7-000 BoltFLANGE, 8X25 |
90049-PH7-000 |
from US $3.74 |
||
|
15
|
15
90052-PH7-000 BoltFLANGE, 6X22 |
90052-PH7-000 |
US $1.72 |
||
|
16
|
16
91307-PK2-005 O-ring9.5X1.5(HONDA KIKAKI) |
91307-PK2-005 |
from US $1.63 |
||
|
17
|
17
91307-PN4-000
O-ring
|
91307-PN4-000 |
— | ||
| replacement | |||||
|
17
|
17
91307-PN3-000 O-ring,17.8x1.4 |
91307-PN3-000 |
US $2.93 |
||
|
18
|
18
91313-P0G-A01
O-ring
|
91313-P0G-A01 |
— | ||
|
19
|
19
91314-PH7-003 O-ring 31.2X4.1 (NOK)31.2X4.1 (NOK) |
91314-PH7-003 |
from US $2.36 |
||
|
20
|
20
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.32 |
||
|
22
|
22
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
23
|
23
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
24
|
24
95701-080-800-8 BoltFLANGE, 8X80 |
95701-080-800-8 |
from US $0.89 |
||
