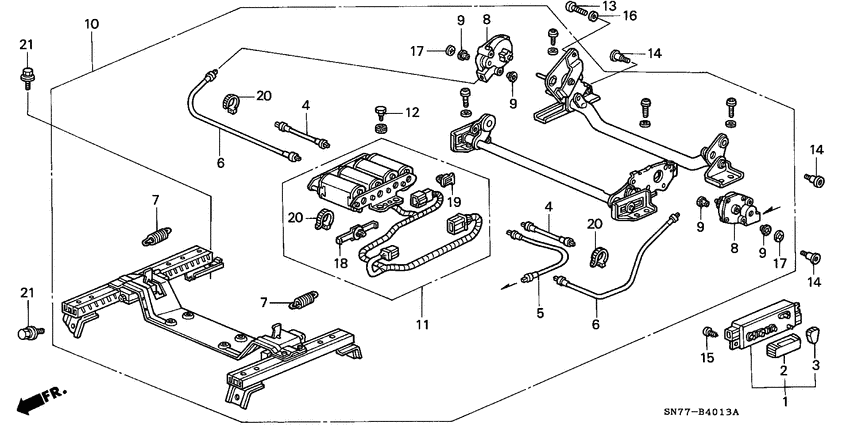

Front seat components (L.; POWER; '96) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.2I VTEC
- abs
- +
- area code
- KG
- left-hand drive
- +
- auto cruise
- +
- air conditioner (manual)
- +
- headlight washer
- +
- plip remote
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-SM4-G51ZC
Switch assy
|
35950-SM4-G51ZC |
— | ||
|
2
|
2
35951-SM4-J62ZC KnobSLIDE *NH167L* |
35951-SM4-J62ZC |
US $8.26 |
||
|
3
|
3
35952-SM4-J61ZC KnobRECLINING *NH167L* |
35952-SM4-J61ZC |
US $4.20 |
||
|
4
|
4
81152-SN7-E71
Cable comp
|
81152-SN7-E71 |
— | ||
|
5
|
5
81153-SN7-E71
Cable
|
81153-SN7-E71 |
— | ||
|
6
|
6
81226-SN7-E21
Cable assy
|
81226-SN7-E21 |
— | ||
|
7
|
7
81227-SN7-E21
Helper
|
81227-SN7-E21 |
— | ||
|
8
|
8
81228-SN7-E21
Reductor assy.
|
81228-SN7-E21 |
— | ||
|
9
|
9
81236-SN7-E71
Absorber
|
81236-SN7-E71 |
— | ||
|
10
|
10
81550-SN7-E71
Device comp.
|
81550-SN7-E71 |
— | ||
|
11
|
11
81551-SN7-E71
Motor assy.
|
81551-SN7-E71 |
— | ||
|
12
|
12
90181-SN7-E71
Bolt
|
90181-SN7-E71 |
— | ||
|
13
|
13
90182-SN7-003
Bolt
|
90182-SN7-003 |
— | ||
|
14
|
14
90183-SN7-003
Bolt
|
90183-SN7-003 |
— | ||
|
15
|
15
90184-SN7-003
Screw
|
90184-SN7-003 |
— | ||
|
16
|
16
90538-SN7-003
Washer
|
90538-SN7-003 |
— | ||
|
17
|
17
90668-SN7-E71
Nut
|
90668-SN7-E71 |
— | ||
|
18
|
18
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
19
|
19
91556-SP0-003 ClipCOUPLER(BROWN) |
91556-SP0-003 |
from US $1.26 |
||
|
20
|
20
91581-SN7-E71
Tie
|
91581-SN7-E71 |
— | ||
|
21
|
21
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
