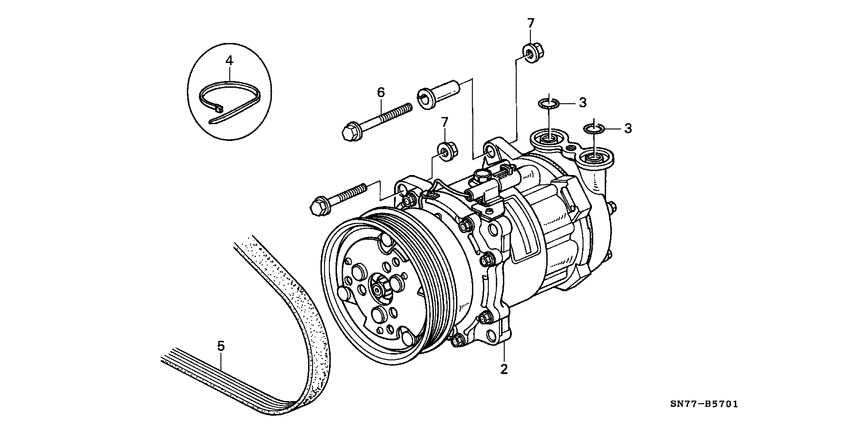

Air conditioner (COMPRESSOR; DIESEL) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- 20T2N15N
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- right-hand drive
- +
- air conditioner (manual)
- +
- color bumper
- +
- plip remote
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
38800-P5T-G20
Compressor assy
|
38800-P5T-G20 |
— | ||
|
3
|
3
38805-P5T-G20
O-ring
|
38805-P5T-G20 |
— | ||
|
4
|
4
38809-P5T-G20
Tie
|
38809-P5T-G20 |
— | ||
|
5
|
5
56992-P5T-G20
Belt
|
56992-P5T-G20 |
— | ||
|
6
|
6
99FB1-10111
Bolt
|
99FB1-10111 |
— | ||
|
7
|
7
99FN1-10041
Nut
|
99FN1-10041 |
— |
