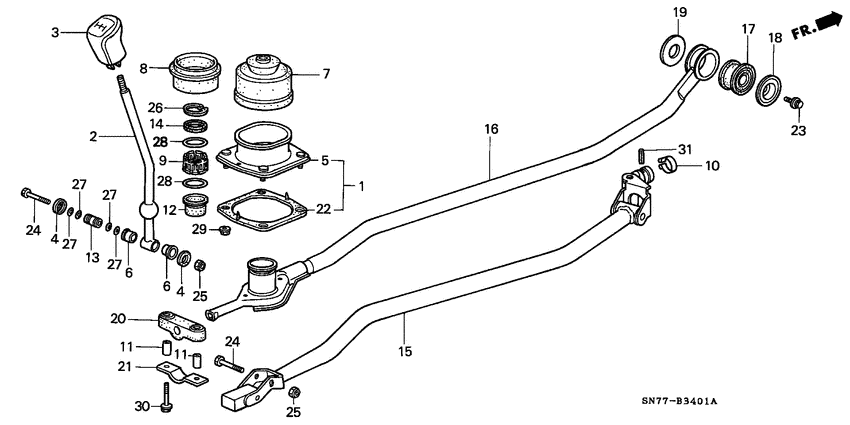

Shift lever (DIESEL) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- 20T2N14N
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0ITD
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- color bumper
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54090-S37-000
Holder comp
|
54090-S37-000 |
— | ||
|
2
|
2
54101-S37-000
Lever
|
54101-S37-000 |
— | ||
|
3
|
3
54102-SN7-000ZA
Knob comp.
|
54102-SN7-000ZA |
— | ||
|
4
|
4
54105-S37-000
Washer
|
54105-S37-000 |
— | ||
|
5
|
5
54106-S37-000
Holder
|
54106-S37-000 |
— | ||
|
6
|
6
54107-S37-000
Bush
|
54107-S37-000 |
— | ||
|
7
|
7
54108-S37-000
Boot
|
54108-S37-000 |
— | ||
|
8
|
8
54109-S37-000
Seal a
|
54109-S37-000 |
— | ||
|
9
|
9
54110-S37-000
Seat
|
54110-S37-000 |
— | ||
|
10
|
10
54112-S37-000
Clip
|
54112-S37-000 |
— | ||
|
11
|
11
54114-S37-000
Collar
|
54114-S37-000 |
— | ||
|
12
|
12
54115-S37-000
Seal b
|
54115-S37-000 |
— | ||
|
13
|
13
54117-S37-000
Collar
|
54117-S37-000 |
— | ||
|
14
|
14
54119-S37-000
Stopper
|
54119-S37-000 |
— | ||
|
15
|
15
54202-S37-000
Rod comp
|
54202-S37-000 |
— | ||
|
16
|
16
54301-S37-000
Extension
|
54301-S37-000 |
— | ||
|
17
|
17
54303-S37-000
Rubber
|
54303-S37-000 |
— | ||
|
18
|
18
54304-SG4-U00
Washer a
|
54304-SG4-U00 |
— | ||
|
19
|
19
54305-S37-000
Washer b
|
54305-S37-000 |
— | ||
|
20
|
20
54306-S37-000
Rubber
|
54306-S37-000 |
— | ||
|
21
|
21
54307-S37-000
Stopper
|
54307-S37-000 |
— | ||
|
22
|
22
54318-S37-000
Seal
|
54318-S37-000 |
— | ||
|
23
|
23
90105-S37-000
Bolt-washer
|
90105-S37-000 |
— | ||
|
24
|
24
90106-S37-000
Bolt
|
90106-S37-000 |
— | ||
|
25
|
25
90115-S37-000
Nut
|
90115-S37-000 |
— | ||
|
26
|
26
90601-S37-000
Circlip
|
90601-S37-000 |
— | ||
|
27
|
27
91301-S37-000
O-ring
|
91301-S37-000 |
— | ||
|
28
|
28
91351-S37-000
O-ring
|
91351-S37-000 |
— | ||
|
29
|
29
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
30
|
30
99FB1-08081
Bolt
|
99FB1-08081 |
— | ||
|
31
|
31
99PA1-16221
Pin
|
99PA1-16221 |
— |
