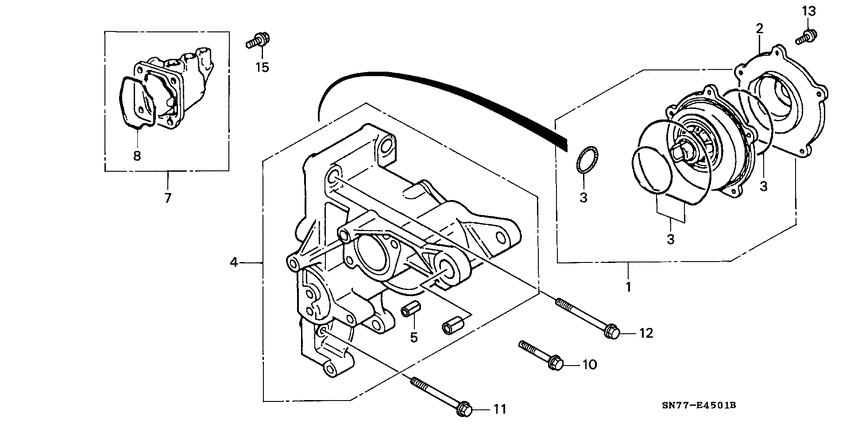

Water pump (AIR CONDITIONER) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- 20T2N15N
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- color bumper
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-P5T-G00
Pump comp
|
19200-P5T-G00 |
— | ||
|
2
|
2
19210-P5T-G00
Cover
|
19210-P5T-G00 |
— | ||
|
3
|
3
19222-P5T-G00
Packing set
|
19222-P5T-G00 |
— | ||
|
4
|
4
19230-P5T-G20
Bracket
|
19230-P5T-G20 |
— | ||
|
5
|
5
19231-P5T-G00
Bush
|
19231-P5T-G00 |
— | ||
|
7
|
7
19350-P5T-G01
Cover assy.
|
19350-P5T-G01 |
— | ||
|
8
|
8
19351-P5T-G00
Packing
|
19351-P5T-G00 |
— | ||
|
10
|
10
99FS1-10301
Bolt
|
99FS1-10301 |
— | ||
|
11
|
11
99FB1-10101
Bolt
|
99FB1-10101 |
— | ||
|
12
|
12
99FB1-10101
Bolt
|
99FB1-10101 |
— | ||
|
13
|
13
99FS1-06251
Screw
|
99FS1-06251 |
— | ||
|
15
|
15
99FS1-08221
Bolt
|
99FS1-08221 |
— |
