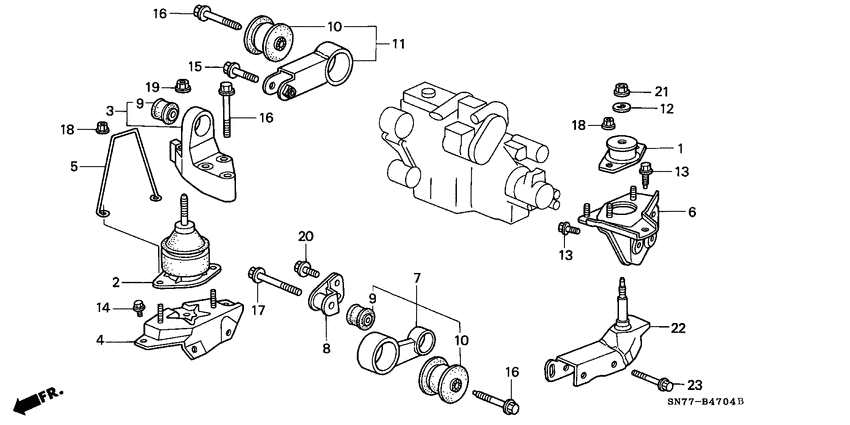

Engine mounts (DIESEL) Diagram Honda ACCORD
- Year
- 1996
- Model code
- ACCORD
- Sales region
- General
- Engine
- 20T2N15N
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- color bumper
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50805-S37-000
Rubber
|
50805-S37-000 |
— | ||
|
2
|
2
50820-S37-000
Rubber assy.
|
50820-S37-000 |
— | ||
|
3
|
3
50821-S37-000
Bracket assy
|
50821-S37-000 |
— | ||
|
4
|
4
50822-S37-000
Bracket
|
50822-S37-000 |
— | ||
|
5
|
5
50823-S37-000
Rod
|
50823-S37-000 |
— | ||
|
6
|
6
50825-S37-000
Bracket
|
50825-S37-000 |
— | ||
|
7
|
7
50830-S37-000
Rod assy
|
50830-S37-000 |
— | ||
|
8
|
8
50831-S37-000
Bracket
|
50831-S37-000 |
— | ||
|
9
|
9
50833-S37-000
Insulator a
|
50833-S37-000 |
— | ||
|
10
|
10
50834-S37-000
Insulator b
|
50834-S37-000 |
— | ||
|
11
|
11
50850-S37-000
Rod assy
|
50850-S37-000 |
— | ||
|
12
|
12
90160-S37-000
Washer
|
90160-S37-000 |
— | ||
|
13
|
13
90161-S37-000
Bolt
|
90161-S37-000 |
— | ||
|
14
|
14
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
15
|
15
99FB1-12101
Bolt
|
99FB1-12101 |
— | ||
|
16
|
16
99FB1-12161
Bolt
|
99FB1-12161 |
— | ||
|
17
|
17
99FB1-12191
Bolt
|
99FB1-12191 |
— | ||
|
18
|
18
99FN1-10041
Nut
|
99FN1-10041 |
— | ||
|
19
|
19
99FN1-12041
Nut
|
99FN1-12041 |
— | ||
|
20
|
20
99FS1-12251
Bolt
|
99FS1-12251 |
— | ||
|
21
|
21
99FX1-12051
Nut
|
99FX1-12051 |
— | ||
|
22
|
22
50827-S37-G00
Bracket
|
50827-S37-G00 |
— | ||
|
23
|
23
99FB1-10131
Bolt
|
99FB1-10131 |
— |
