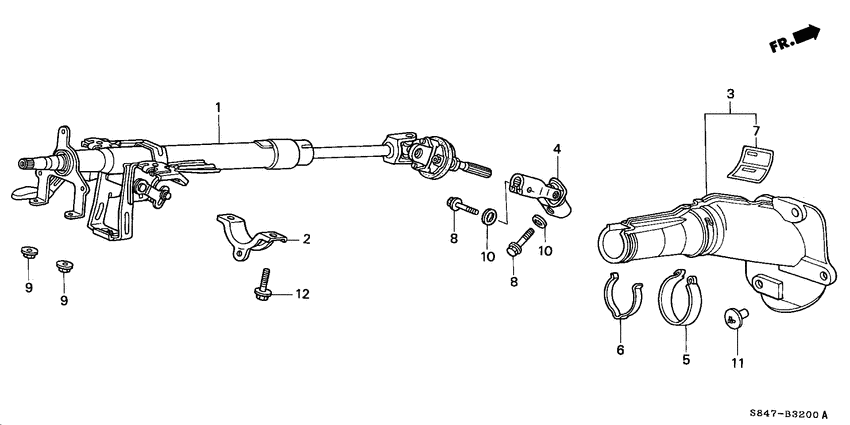

Steering column Diagram Honda ACCORD
- Year
- 2000
- Model code
- ACCORD
- Sales region
- General
- Engine
- F23A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.3EXI
- abs
- +
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53200-S84-G01
Column assy
|
53200-S84-G01 |
— | ||
|
2
|
2
53216-S84-A00 Hold bSTEERING COLUMN |
53216-S84-A00 |
US $5.60 |
||
|
3
|
3
53320-S84-G00
Cover
|
53320-S84-G00 |
— | ||
|
4
|
4
53323-S04-003 Joint comp. bSTEERING |
53323-S04-003 |
US $80 |
||
|
5
|
5
53325-SH3-000 Clip AJOINT COVER |
53325-SH3-000 |
US $10.42 |
||
|
6
|
6
53326-SB0-000 Clip bJOINT COVER |
53326-SB0-000 |
US $3.64 |
||
|
7
|
7
77873-S04-G80 LabelSTEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
77873-S04-G80 |
US $2.81 |
||
|
8
|
8
90135-SB0-003 BoltSTEERING YOKE, 8X28 (NIPPON SEIKO) |
90135-SB0-003 |
from US $0.77 |
||
|
9
|
9
90361-SR3-000 NutFLANGE, 8MM |
90361-SR3-000 |
from US $0.99 |
||
|
10
|
10
90511-671-003 WasherTOOTHED LOCK |
90511-671-003 |
US $0.19 |
||
|
11
|
11
90676-SB2-003 ClipDASHBOARD INSULATOR |
90676-SB2-003 |
US $2.07 |
||
|
12
|
12
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
