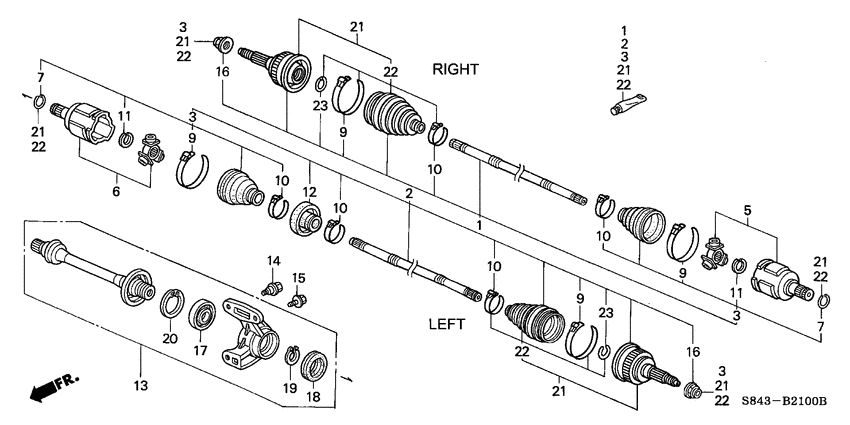

Front driveshaft/ half shaft (L4; '98) Diagram Honda ACCORD
- Year
- 1998
- Model code
- ACCORD
- Sales region
- General
- Engine
- F23A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.3EXI
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-S84-A00
Driveshaft set
|
44010-S84-A00 |
— | ||
|
2
|
2
44011-S84-A00 Driveshaft setL. |
44011-S84-A00 |
US $418.56 |
||
|
3
|
3
44017-S84-A00 Boot setINBOARD |
44017-S84-A00 |
US $68.48 |
||
|
5
|
5
44310-S84-A00
Joint comp
|
44310-S84-A00 |
— | ||
|
6
|
6
44310-S84-A70 Joint compINBOARD |
44310-S84-A70 |
US $366.08 |
||
|
7
|
7
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
7
|
7
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
7
|
7
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
7
|
7
44319-S0A-300 Set ring28X2.0 |
44319-S0A-300 |
from US $2.21 |
||
| replacement | |||||
|
7
|
7
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
10
|
10
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
11
|
11
44338-SM1-300 Circlip26MM |
44338-SM1-300 |
US $2.45 |
||
|
13
|
13
44500-S84-A00
Shaft assy
|
44500-S84-A00 |
— | ||
|
14
|
14
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
15
|
15
90165-SE0-000
Bolt
|
90165-SE0-000 |
— | ||
|
16
|
16
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
from US $6.35 |
||
|
17
|
17
91057-SH3-008 BearingHALF SHAFT (NTN) |
91057-SH3-008 |
from US $14.28 |
||
|
18
|
18
91260-S84-A01 SealHALF SHAFT OUTER |
91260-S84-A01 |
US $11.25 |
||
|
19
|
19
94510-38000 CirclipEXTERNAL, 38MM |
94510-38000 |
from US $1.04 |
||
|
20
|
20
94520-58000 CirclipINTERNAL, 58MM |
94520-58000 |
from US $0.85 |
||
|
21
|
21
44014-S10-A00
Joint set
|
44014-S10-A00 |
— | ||
|
22
|
22
44018-S84-C00 Boot setOUTBOARD |
44018-S84-C00 |
US $69.76 |
||
|
22
|
22
44018-S30-C00 Boot setOUTBOARD |
44018-S30-C00 |
US $67.20 |
||
|
23
|
23
44337-SM1-300 Ring bSTOPPER |
44337-SM1-300 |
US $1.75 |
||
|
23
|
23
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
US $1.75 |
||
