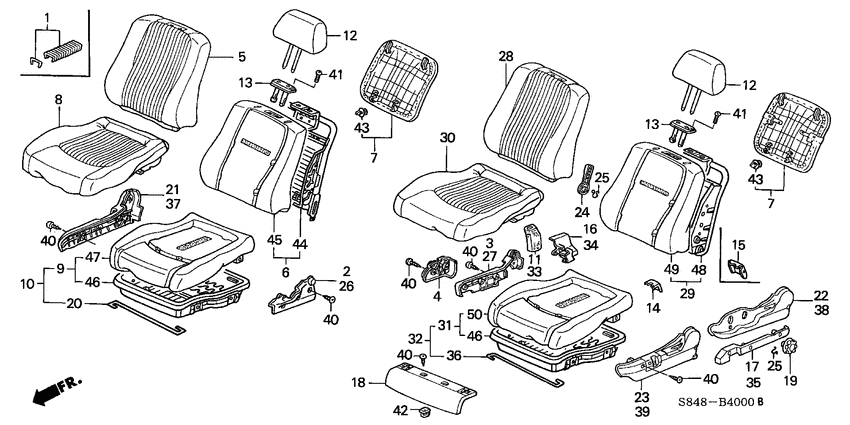

Front seat Diagram Honda ACCORD
- Year
- 1998
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0EXI
- area code
- KN
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.48 |
||
|
2
|
2
81115-S04-000ZH
Cover
|
81115-S04-000ZH |
— | ||
|
2
|
2
81115-S04-000ZF CoverR. FR. SEAT CENTER *B95L* |
81115-S04-000ZF |
US $11.76 |
||
|
5
|
5
81121-S84-A11ZC
Cover
|
81121-S84-A11ZC |
— | ||
|
5
|
5
81121-S84-A11ZA
Cover
|
81121-S84-A11ZA |
— | ||
|
6
|
6
81122-S84-A01
Pad & frame comp.
|
81122-S84-A01 |
— | ||
|
8
|
8
81131-S84-Q01ZC
Cover
|
81131-S84-Q01ZC |
— | ||
|
8
|
8
81131-S84-Q01ZA
Cover
|
81131-S84-Q01ZA |
— | ||
|
10
|
10
81132-S84-Q01
Pad & frame comp.
|
81132-S84-Q01 |
— | ||
|
12
|
12
81140-S84-A01ZA
Headrest assy
|
81140-S84-A01ZA |
— | ||
|
12
|
12
81140-S84-A01ZC
Headrest assy
|
81140-S84-A01ZC |
— | ||
|
13
|
13
81144-SH3-003ZX Guide compHEADREST *YR169L* |
81144-SH3-003ZX |
US $10.08 |
||
|
13
|
13
81144-SH3-003YC
Guide comp
|
81144-SH3-003YC |
— | ||
|
14
|
14
81195-SM4-J01ZN CoverFOOT OUTER *YR169L* |
81195-SM4-J01ZN |
US $7.42 |
||
|
14
|
14
81195-SM4-J01ZR
Cover
|
81195-SM4-J01ZR |
— | ||
|
16
|
16
81196-S84-A00ZD
Cover
|
81196-S84-A00ZD |
— | ||
|
16
|
16
81196-S84-A00ZA
Cover
|
81196-S84-A00ZA |
— | ||
|
19
|
19
81223-S84-A10ZC
Handle
|
81223-S84-A10ZC |
— | ||
|
19
|
19
81223-S84-A10ZA
Handle
|
81223-S84-A10ZA |
— | ||
|
20
|
20
81227-S04-003
Spring
|
81227-S04-003 |
— | ||
|
22
|
22
81238-S84-A10ZC
Cover
|
81238-S84-A10ZC |
— | ||
|
22
|
22
81238-S84-A10ZA
Cover
|
81238-S84-A10ZA |
— | ||
|
25
|
25
81322-SP0-003 ClipLUMBAR SUPPORT |
81322-SP0-003 |
US $1.40 |
||
|
26
|
26
81515-S04-000ZH CoverL. CENTER *YR169L* |
81515-S04-000ZH |
US $11.76 |
||
|
26
|
26
81515-S04-000ZF CoverL. CENTER *B95L* |
81515-S04-000ZF |
US $11.76 |
||
|
28
|
28
81521-S84-Q01ZC
Cover
|
81521-S84-Q01ZC |
— | ||
|
28
|
28
81521-S84-Q01ZA
Cover
|
81521-S84-Q01ZA |
— | ||
|
29
|
29
81522-S84-A01
Pad & frame comp.
|
81522-S84-A01 |
— | ||
|
30
|
30
81531-S84-A01ZA
Cover
|
81531-S84-A01ZA |
— | ||
|
30
|
30
81531-S84-A01ZB
Cover
|
81531-S84-A01ZB |
— | ||
|
31
|
31
81532-S84-A01
Pad & frame comp.
|
81532-S84-A01 |
— | ||
|
34
|
34
81596-S84-A00ZA
Cover
|
81596-S84-A00ZA |
— | ||
|
34
|
34
81596-S84-A00ZD
Cover
|
81596-S84-A00ZD |
— | ||
|
37
|
37
81638-S84-A00ZC CoverL. RECLINING (TS TECH) *YR169L* |
81638-S84-A00ZC |
US $18.56 |
||
|
37
|
37
81638-S84-A00ZA
Cover
|
81638-S84-A00ZA |
— | ||
|
40
|
40
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
41
|
41
90161-SB4-003 ScrewFLAT, 4X16 |
90161-SB4-003 |
US $2.10 |
