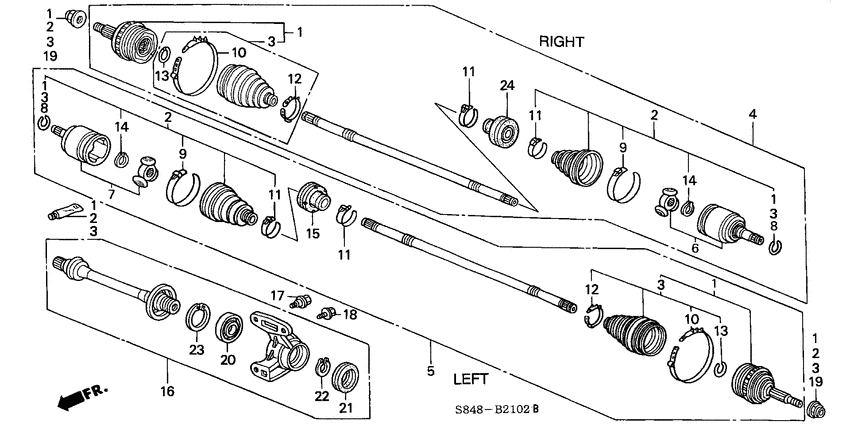

Front driveshaft (L4; 2) Diagram Honda ACCORD
- Year
- 2000
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0VTI
- area code
- KU
- right-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-S0K-C00 Joint setOUTBOARD |
44014-S0K-C00 |
US $352 |
||
|
2
|
2
44017-S84-A01
Boot set
|
44017-S84-A01 |
— | ||
| replacement | |||||
|
2
|
2
44017-S84-A02
Boot set
|
44017-S84-A02 |
— | ||
|
3
|
3
44018-S0K-C20 Boot setOUTBOARD |
44018-S0K-C20 |
US $69.76 |
||
|
4
|
4
44305-S84-C61
Driveshaft assy.
|
44305-S84-C61 |
— | ||
|
5
|
5
44306-S84-C61
Driveshaft assy.
|
44306-S84-C61 |
— | ||
|
6
|
6
44310-S84-A10
Joint comp
|
44310-S84-A10 |
— | ||
|
7
|
7
44310-S84-A10
Joint comp
|
44310-S84-A10 |
— | ||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
from US $2.05 |
||
|
8
|
8
44319-S0A-300 Set ring28X2.0 |
44319-S0A-300 |
from US $2.16 |
||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
from US $2.05 |
||
|
9
|
9
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
10
|
10
44327-SX0-C02 BandOUTBOARD BOOT (NIPPON HATSUJO) |
44327-SX0-C02 |
US $7.98 |
||
|
10
|
10
44327-S0K-C01 BandOUTBOARD BOOT (OETIKER LIMITED) |
44327-S0K-C01 |
US $10.22 |
||
|
11
|
11
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
12
|
12
44329-S0K-C01 BandDRIVESHAFT (OETIKER LIMITED) |
44329-S0K-C01 |
US $6.58 |
||
|
12
|
12
44329-SX0-C02 BandDRIVESHAFT (NIPPON HATSUJO) |
44329-SX0-C02 |
US $6.19 |
||
|
13
|
13
44337-SM1-300 Ring bSTOPPER |
44337-SM1-300 |
US $1.75 |
||
|
13
|
13
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
from US $1.75 |
||
|
14
|
14
44338-SM1-300 Circlip26MM |
44338-SM1-300 |
US $2.45 |
||
|
14
|
14
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
15
|
15
44351-S84-A11
Weight
|
44351-S84-A11 |
— | ||
|
19
|
19
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
US $6.35 |
||
