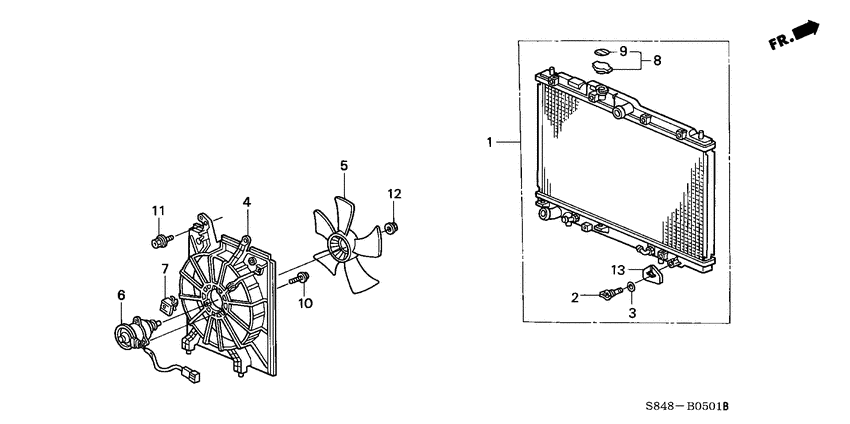

Radiator (V6) Diagram Honda ACCORD
- Year
- 2000
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0SIR SINGAP
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-P8C-A51
Radiator comp
|
19010-P8C-A51 |
— | ||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
US $1.95 |
||
|
4
|
4
19015-P8C-A01
Shroud comp.
|
19015-P8C-A01 |
— | ||
|
5
|
5
19020-P8C-A01 FanCOOLING |
19020-P8C-A01 |
US $40.19 |
||
|
6
|
6
19030-P8C-A01 MotorCOOLING FAN (DENSO) |
19030-P8C-A01 |
US $224 |
||
|
7
|
7
19033-PAA-A01 ClipCOUPLER (DENSO) |
19033-PAA-A01 |
US $4.62 |
||
|
8
|
8
19045-PAA-A01 Cap comp.RADIATOR (DENSO) |
19045-PAA-A01 |
from US $19.86 |
||
|
9
|
9
19046-PAA-A10 LabelRADIATOR CAP (VALEO) |
19046-PAA-A10 |
US $2.10 |
||
|
10
|
10
90041-P5A-003 Screw-washer4X11 |
90041-P5A-003 |
US $1.33 |
||
|
11
|
11
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
12
|
12
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $3.03 |
||
|
13
|
13
19013-P8C-A01 PlateDRAIN |
19013-P8C-A01 |
US $3.78 |
