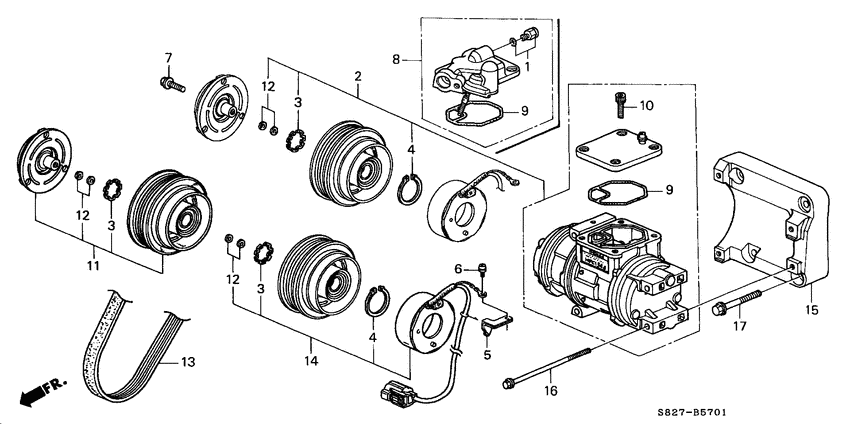

Air conditioner (COMPRESSOR; V6; 1) Diagram Honda ACCORD
- Year
- 1998
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KE
- right-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-P9K-E01
Valve sub assy.
|
38801-P9K-E01 |
— | ||
|
2
|
2
38810-P8A-A01 Compressor comp.DENSO |
38810-P8A-A01 |
US $787.20 |
||
|
3
|
3
38812-PH1-003 Ring bSNAP |
38812-PH1-003 |
US $4.06 |
||
|
4
|
4
38812-671-003 Ring aSNAP |
38812-671-003 |
from US $3.29 |
||
|
5
|
5
38816-P8A-A01 ClipLEAD WIRE |
38816-P8A-A01 |
US $2.24 |
||
|
6
|
6
38827-PH7-003 Screw-washer5X8 |
38827-PH7-003 |
US $1.26 |
||
|
7
|
7
38829-PR3-003 BoltWASHER HEAD |
38829-PR3-003 |
US $1.61 |
||
|
8
|
8
38838-P8C-A01
Valve
|
38838-P8C-A01 |
— | ||
|
9
|
9
38839-PR7-A01 O-ring |
38839-PR7-A01 |
US $7 |
||
|
10
|
10
38840-PC1-003 Bolt b |
38840-PC1-003 |
US $3.50 |
||
|
11
|
11
38900-P8A-A01
Clutch set
|
38900-P8A-A01 |
— | ||
|
12
|
12
38912-PH1-N01 Plate setWASHER |
38912-PH1-N01 |
US $4.72 |
||
|
13
|
13
38920-P8A-A02 BeltCOMPRESSOR (BANDO) |
38920-P8A-A02 |
US $39.68 |
||
|
13
|
13
38920-P8C-A02 BeltCOMPRESSOR (MITSUBOSHI) |
38920-P8C-A02 |
US $39.68 |
||
|
14
|
14
38924-P8C-A01
Stator set
|
38924-P8C-A01 |
— | ||
|
15
|
15
38930-P8A-A00 BracketCOMPRESSOR |
38930-P8A-A00 |
US $126.08 |
||
|
16
|
16
90023-P8A-A00 BoltFLANGE, 8X85 |
90023-P8A-A00 |
US $2.59 |
||
|
17
|
17
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
