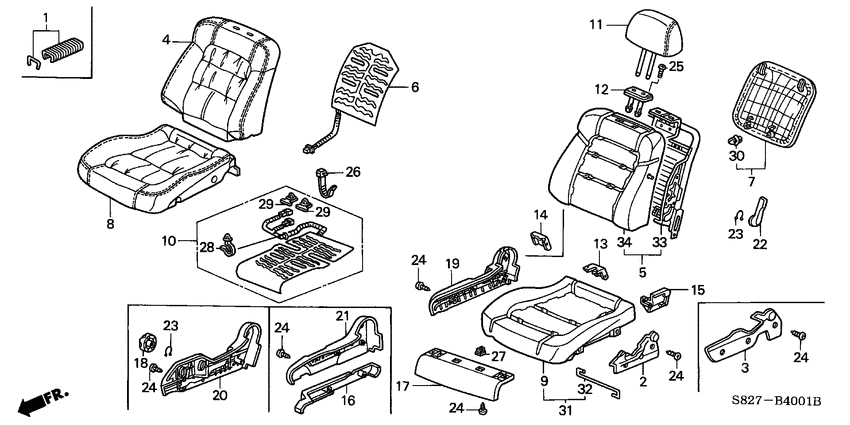

Front seat (R.; 1) Diagram Honda ACCORD
- Year
- 1998
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
81115-S04-000ZH
Cover
|
81115-S04-000ZH |
— | ||
|
2
|
2
81115-S04-000ZA CoverR. FR. SEAT CENTER *NH264L* |
81115-S04-000ZA |
US $11.76 |
||
|
4
|
4
81121-S80-G61ZB
Cover
|
81121-S80-G61ZB |
— | ||
|
4
|
4
81121-S80-G61ZA
Cover
|
81121-S80-G61ZA |
— | ||
|
5
|
5
81122-S82-A21
Pad & frame comp.
|
81122-S82-A21 |
— | ||
|
6
|
6
81124-S80-G61
Heater comp.
|
81124-S80-G61 |
— | ||
|
7
|
7
81128-S87-A62ZD
Cover comp.
|
81128-S87-A62ZD |
— | ||
|
7
|
7
81128-S87-A62ZB Cover comp.FR. SEATBACK (LEATHER) *YR169L* |
81128-S87-A62ZB |
US $165.12 |
||
|
8
|
8
81131-S80-G61ZB
Cover
|
81131-S80-G61ZB |
— | ||
|
8
|
8
81131-S80-G61ZA
Cover
|
81131-S80-G61ZA |
— | ||
|
9
|
9
81132-S82-A11
Pad & frame comp.
|
81132-S82-A11 |
— | ||
|
10
|
10
81134-S80-G61
Heater comp.
|
81134-S80-G61 |
— | ||
|
11
|
11
81140-S80-G61ZA
Headrest assy
|
81140-S80-G61ZA |
— | ||
|
11
|
11
81140-S80-G61ZB
Headrest assy
|
81140-S80-G61ZB |
— | ||
|
12
|
12
81144-SH3-003ZY
Guide comp
|
81144-SH3-003ZY |
— | ||
|
12
|
12
81144-SH3-003ZX Guide compHEADREST *YR169L* |
81144-SH3-003ZX |
US $10.08 |
||
|
13
|
13
81195-SM4-J01ZN CoverFOOT OUTER *YR169L* |
81195-SM4-J01ZN |
US $7.42 |
||
|
13
|
13
81195-SM4-J01ZP CoverFOOT OUTER *NH264L* |
81195-SM4-J01ZP |
US $7.42 |
||
|
15
|
15
81196-S82-A00ZC CoverR. RR. INNER FOOT *YR169L* |
81196-S82-A00ZC |
US $8.82 |
||
|
15
|
15
81196-S82-A00ZA CoverR. RR. INNER FOOT *NH264L* |
81196-S82-A00ZA |
US $8.82 |
||
|
19
|
19
81238-S84-A00ZC
Cover
|
81238-S84-A00ZC |
— | ||
|
19
|
19
81238-S84-A00ZD CoverR. RECLINING *NH264L* |
81238-S84-A00ZD |
US $18.56 |
||
|
24
|
24
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
25
|
25
90161-SB4-003 ScrewFLAT, 4X16 |
90161-SB4-003 |
US $2.10 |
||
|
26
|
26
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
28
|
28
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
29
|
29
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
30
|
30
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
