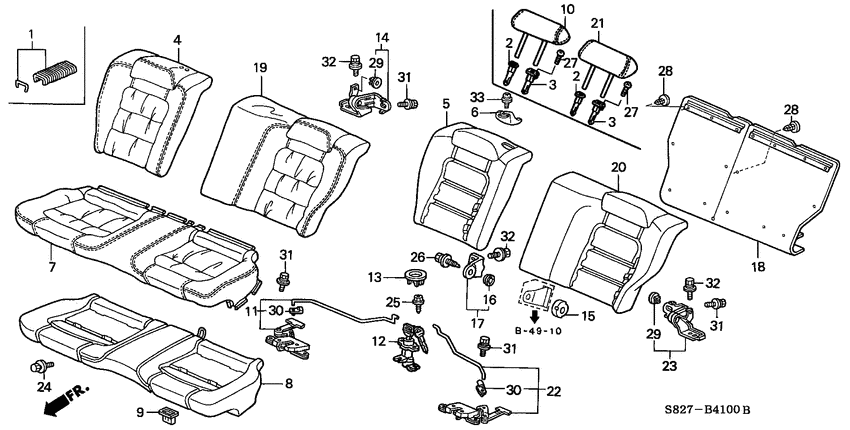

Rear seat Diagram Honda ACCORD
- Year
- 1998
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
81143-SM4-J01ZY Guide compHEADREST FREE *YR169L* |
81143-SM4-J01ZY |
US $8.12 |
||
|
2
|
2
81143-SM4-J01YA Guide compHEADREST FREE *NH264L* |
81143-SM4-J01YA |
US $6.02 |
||
|
3
|
3
81144-SM4-J01YB Guide compHEADREST LOCK *NH264L* |
81144-SM4-J01YB |
US $11.76 |
||
|
3
|
3
81144-SM4-J01ZY
Guide comp
|
81144-SM4-J01ZY |
— | ||
|
4
|
4
82121-S80-G61ZB
Cover
|
82121-S80-G61ZB |
— | ||
|
4
|
4
82121-S80-G61ZA
Cover
|
82121-S80-G61ZA |
— | ||
|
5
|
5
82122-S80-G11
Pad & frame comp.
|
82122-S80-G11 |
— | ||
|
6
|
6
82127-S84-A01ZD
Guide
|
82127-S84-A01ZD |
— | ||
|
6
|
6
82127-S84-A01ZC
Guide
|
82127-S84-A01ZC |
— | ||
|
7
|
7
82131-S80-A61ZB
Cover
|
82131-S80-A61ZB |
— | ||
|
7
|
7
82131-S80-A61ZA
Cover
|
82131-S80-A61ZA |
— | ||
|
8
|
8
82132-S82-A01
Pad & frame comp.
|
82132-S82-A01 |
— | ||
|
9
|
9
82137-S84-A01 ClipRR. SEAT CUSHION |
82137-S84-A01 |
US $2.87 |
||
|
10
|
10
82140-S80-G61ZB
Headrest assy
|
82140-S80-G61ZB |
— | ||
|
10
|
10
82140-S80-G61ZA
Headrest assy
|
82140-S80-G61ZA |
— | ||
|
11
|
11
82220-S82-A00
Lock assy
|
82220-S82-A00 |
— | ||
|
12
|
12
82226-S01-A01
Cylinder
|
82226-S01-A01 |
— | ||
|
13
|
13
82228-SK8-A30ZH
Garnish
|
82228-SK8-A30ZH |
— | ||
|
13
|
13
82228-SK8-A30ZL
Garnish
|
82228-SK8-A30ZL |
— | ||
|
14
|
14
82290-S82-A00
Bracket comp.
|
82290-S82-A00 |
— | ||
|
15
|
15
82291-S04-000 CoverRR. CENTER PIVOT |
82291-S04-000 |
US $2.94 |
||
|
16
|
16
82292-S04-000 CollarRR. CENTER SEAT PIVOT |
82292-S04-000 |
US $1.61 |
||
|
17
|
17
82295-S04-000
Bracket comp.
|
82295-S04-000 |
— | ||
|
18
|
18
82320-S82-A01ZA
Mat
|
82320-S82-A01ZA |
— | ||
|
19
|
19
82521-S80-G61ZB
Cover
|
82521-S80-G61ZB |
— | ||
|
19
|
19
82521-S80-G61ZA
Cover
|
82521-S80-G61ZA |
— | ||
|
20
|
20
82522-S80-G11
Pad & frame comp.
|
82522-S80-G11 |
— | ||
|
21
|
21
82540-S80-G61ZA
Headrest assy
|
82540-S80-G61ZA |
— | ||
|
21
|
21
82540-S80-G61ZB
Headrest assy
|
82540-S80-G61ZB |
— | ||
|
22
|
22
82620-S82-A00
Lock assy
|
82620-S82-A00 |
— | ||
|
23
|
23
82690-S82-A00
Bracket comp.
|
82690-S82-A00 |
— | ||
|
24
|
24
90003-692-000 BoltFLANGE, 6X16 |
90003-692-000 |
US $2.31 |
||
|
25
|
25
90123-SV4-003 ScrewEVATITE, 4X12 |
90123-SV4-003 |
US $1.19 |
||
|
26
|
26
90139-SH3-003
Bolt-washer
|
90139-SH3-003 |
— | ||
|
27
|
27
90161-SB4-003 ScrewFLAT, 4X16 |
90161-SB4-003 |
US $2.10 |
||
|
28
|
28
90667-SA7-003YG ClipMAT, 5MM *NH120L* |
90667-SA7-003YG |
US $1.54 |
||
|
29
|
29
90668-SA5-003 GrommetSCREW, 6MM |
90668-SA5-003 |
US $2.80 |
||
|
30
|
30
91513-SR3-003
Snap
|
91513-SR3-003 |
— | ||
|
31
|
31
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
32
|
32
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
33
|
33
93903-45380 ScrewTAPPING, 5X16 |
93903-45380 |
from US $0.37 |
