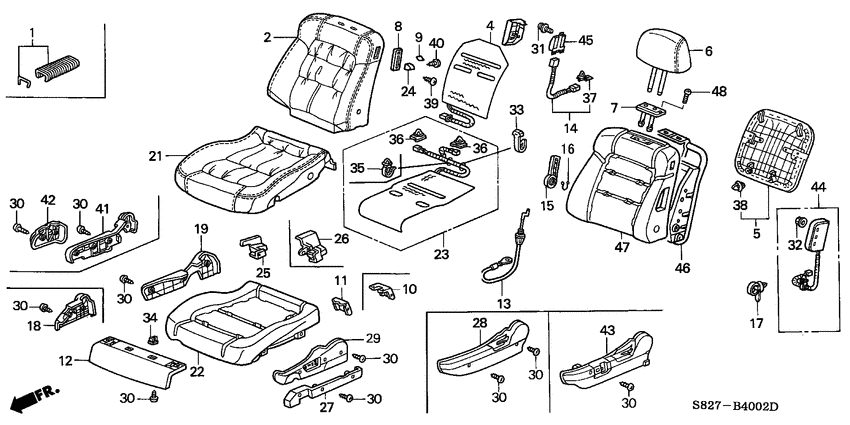

Front seat (L.; 2) Diagram Honda ACCORD
- Year
- 2002
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
04815-S80-G60ZA
Cover set
|
04815-S80-G60ZA |
— | ||
|
2
|
2
04815-S80-G60ZB
Cover set
|
04815-S80-G60ZB |
— | ||
|
4
|
4
81124-S80-G81
Heater comp.
|
81124-S80-G81 |
— | ||
|
5
|
5
81128-S87-A62ZD
Cover comp.
|
81128-S87-A62ZD |
— | ||
|
5
|
5
81128-S87-A62ZB Cover comp.FR. SEATBACK (LEATHER) *YR169L* |
81128-S87-A62ZB |
US $165.12 |
||
|
6
|
6
81140-S80-G81ZA
Headrest assy
|
81140-S80-G81ZA |
— | ||
|
6
|
6
81140-S80-G81ZB
Headrest assy
|
81140-S80-G81ZB |
— | ||
|
7
|
7
81144-SH3-003ZY
Guide comp
|
81144-SH3-003ZY |
— | ||
|
7
|
7
81144-SH3-003ZX Guide compHEADREST *YR169L* |
81144-SH3-003ZX |
US $10.08 |
||
|
8
|
8
81161-S80-A61ZB
Garnish
|
81161-S80-A61ZB |
— | ||
|
8
|
8
81161-S80-A61ZA
Garnish
|
81161-S80-A61ZA |
— | ||
|
9
|
9
81163-SG0-A01
Seal
|
81163-SG0-A01 |
— | ||
|
11
|
11
81195-S87-A50ZF CoverRR. OUTER FOOT *YR169L* |
81195-S87-A50ZF |
US $8.82 |
||
|
11
|
11
81195-S87-A50ZD CoverRR. OUTER FOOT *NH264L* |
81195-S87-A50ZD |
US $8.82 |
||
|
12
|
12
81222-S87-A50ZD
Cover
|
81222-S87-A50ZD |
— | ||
|
12
|
12
81222-S87-A50ZB CoverFR. *YR169L* |
81222-S87-A50ZB |
US $26.37 |
||
|
13
|
13
81235-S80-A01
Wire
|
81235-S80-A01 |
— | ||
|
15
|
15
81321-S80-A81ZB KnobLUMBAR SUPPORT (TS TECH) *YR169L* |
81321-S80-A81ZB |
US $7.98 |
||
|
15
|
15
81321-S80-A81ZA
Knob
|
81321-S80-A81ZA |
— | ||
|
16
|
16
81322-S80-A81 ClipLUMBAR SUPPORT |
81322-S80-A81 |
US $1.61 |
||
|
17
|
17
81339-S87-A71 ClipOFFSET |
81339-S87-A71 |
US $7 |
||
|
19
|
19
81515-S87-A50ZD
Cover
|
81515-S87-A50ZD |
— | ||
|
19
|
19
81515-S87-A50ZB
Cover
|
81515-S87-A50ZB |
— | ||
|
21
|
21
81531-S80-G62ZB
Cover
|
81531-S80-G62ZB |
— | ||
|
21
|
21
81531-S80-G62ZA
Cover
|
81531-S80-G62ZA |
— | ||
|
22
|
22
81532-S82-A51
Pad & frame comp.
|
81532-S82-A51 |
— | ||
|
23
|
23
81534-S80-G81
Heater comp.
|
81534-S80-G81 |
— | ||
|
24
|
24
81562-S80-A61ZA
Knob
|
81562-S80-A61ZA |
— | ||
|
24
|
24
81562-S80-A61ZB
Knob
|
81562-S80-A61ZB |
— | ||
|
25
|
25
81596-S80-A50ZC
Cover
|
81596-S80-A50ZC |
— | ||
|
25
|
25
81596-S80-A50ZA
Cover
|
81596-S80-A50ZA |
— | ||
|
27
|
27
81621-S87-A50ZD
Cover
|
81621-S87-A50ZD |
— | ||
|
27
|
27
81621-S87-A50ZB
Cover
|
81621-S87-A50ZB |
— | ||
|
29
|
29
81638-S87-A50ZD CoverL. RECLINING *NH264L* |
81638-S87-A50ZD |
US $17.79 |
||
|
29
|
29
81638-S87-A50ZB
Cover
|
81638-S87-A50ZB |
— | ||
|
30
|
30
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
32
|
32
90321-S84-000 Nut-washer8MM |
90321-S84-000 |
US $1.48 |
||
|
33
|
33
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
34
|
34
90662-671-003 GrommetSCREW, 5MM (WHITE) |
90662-671-003 |
US $2.59 |
||
|
36
|
36
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
38
|
38
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
||
|
39
|
39
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
40
|
40
93901-22180 ScrewTAPPING, 3X8 |
93901-22180 |
from US $0.37 |
||
|
44
|
44
06788-S84-B81
Module kit
|
06788-S84-B81 |
— | ||
|
46
|
46
81526-S82-G61
Frame comp
|
81526-S82-G61 |
— | ||
|
47
|
47
81527-S80-A61 Pad compL. FR. SEATBACK (TS TECH) |
81527-S80-A61 |
US $382.72 |
||
|
48
|
48
90161-S84-003 ScrewFLAT, 4X16 |
90161-S84-003 |
US $1.96 |
