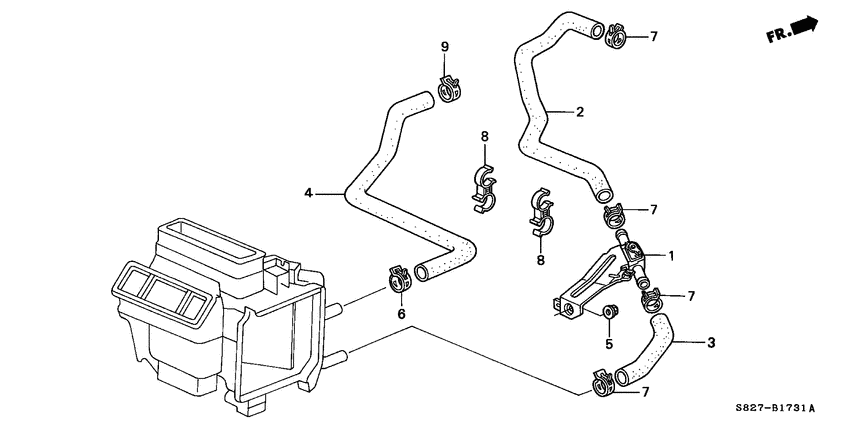

Water valve (V6; LH) Diagram Honda ACCORD
- Year
- 2002
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79710-S0K-A01
Valve assy.
|
79710-S0K-A01 |
— | ||
|
2
|
2
79721-S87-A01 Hose aWATER IN. |
79721-S87-A01 |
US $15.87 |
||
|
3
|
3
79722-S87-A00
Hose b
|
79722-S87-A00 |
— | ||
|
4
|
4
79725-S87-A00
Hose
|
79725-S87-A00 |
— | ||
|
5
|
5
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
6
|
6
90661-SL5-003 Clip, WATER HOSE |
90661-SL5-003 |
US $3.99 |
||
|
7
|
7
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
7
|
7
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
8
|
8
91557-S87-A01 ClampHEATER |
91557-S87-A01 |
US $1.89 |
||
|
9
|
9
90661-SL5-003 Clip, WATER HOSE |
90661-SL5-003 |
US $3.99 |
||
