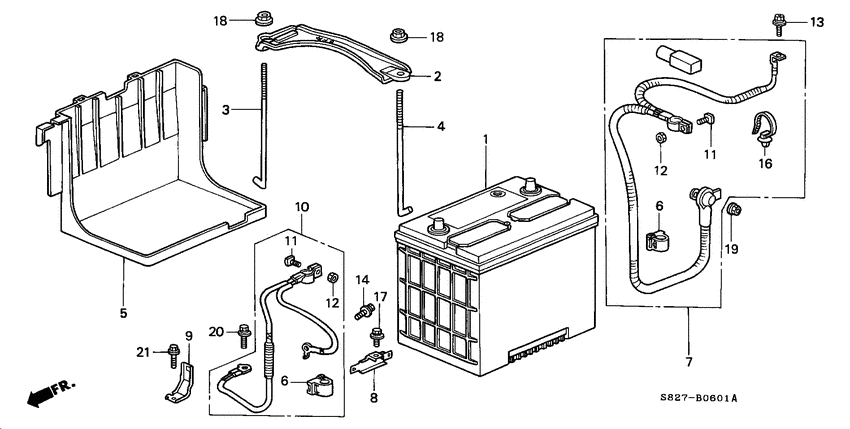

Battery (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-S87-G01
Battery assy
|
31500-S87-G01 |
— | ||
|
1
|
1
31500-S87-G02
Battery assy
|
31500-S87-G02 |
— | ||
|
2
|
2
31512-SV7-A00 PlateBATTERY SETTING |
31512-SV7-A00 |
US $13.95 |
||
|
3
|
3
31513-SM4-000 BoltBATTERY SETTING(195MM) |
31513-SM4-000 |
from US $4.90 |
||
|
4
|
4
31513-SP0-010 BoltBATTERY SETTING (210MM) |
31513-SP0-010 |
from US $3.03 |
||
|
5
|
5
31521-SV7-A01 BoxBATTERY (80D) |
31521-SV7-A01 |
US $13.72 |
||
|
6
|
6
32116-P64-003 HolderCORRUGATED (DARK GREEN) (13MM) |
32116-P64-003 |
US $2.38 |
||
|
7
|
7
32410-S87-A00
Cable assy
|
32410-S87-A00 |
— | ||
|
8
|
8
32412-S84-A00 BracketSTARTER CABLE |
32412-S84-A00 |
US $4.34 |
||
|
9
|
9
32413-S87-A00 Bracket aSTARTER CABLE |
32413-S87-A00 |
US $4.07 |
||
|
10
|
10
32600-S87-A00
Cable assy
|
32600-S87-A00 |
— | ||
|
11
|
11
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
12
|
12
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
13
|
13
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
14
|
14
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
16
|
16
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
17
|
17
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
18
|
18
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
19
|
19
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
