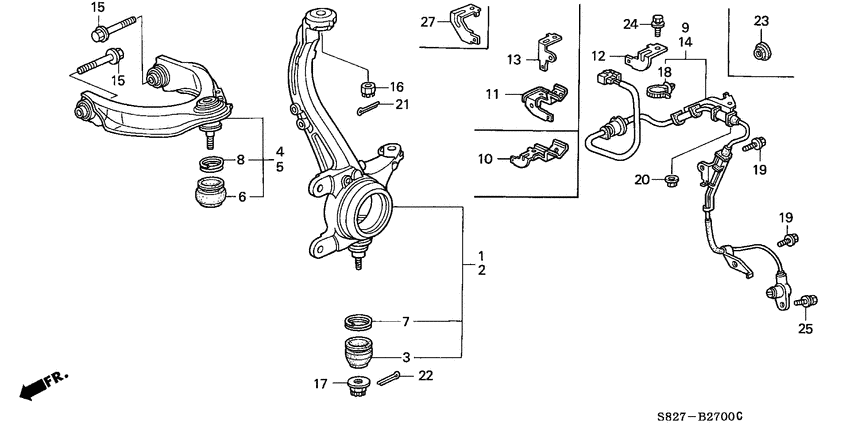

Knuckle Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51210-S84-A02 Knuckle compR. FR. |
51210-S84-A02 |
US $296.96 |
||
|
2
|
2
51215-S84-A02 Knuckle compL. FR. |
51215-S84-A02 |
US $296.96 |
||
|
3
|
3
51225-S84-A01 BootLOWER BALL DUST |
51225-S84-A01 |
from US $12.98 |
||
|
4
|
4
51450-S84-A01 Arm compR. FR. UPPER |
51450-S84-A01 |
US $174.08 |
||
|
5
|
5
51460-S84-A01 Arm compL. FR. UPPER |
51460-S84-A01 |
US $174.08 |
||
|
6
|
6
51464-S04-013 Boot, UPPER BALL JOINT |
51464-S04-013 |
US $9.77 |
||
|
7
|
7
52226-SL0-003 CirclipLOWER BALL(MUSASHI) |
52226-SL0-003 |
from US $3.83 |
||
|
8
|
8
52338-SL0-003 CirclipCONTROL ARM |
52338-SL0-003 |
US $4.37 |
||
|
9
|
9
57450-S87-A52
Sensor assy
|
57450-S87-A52 |
— | ||
|
10
|
10
57451-S80-G02
Bracket
|
57451-S80-G02 |
— | ||
|
13
|
13
57451-S87-A50 BracketR. COUPLER |
57451-S87-A50 |
US $3.29 |
||
|
14
|
14
57455-S84-A52 Sensor assyL. FR. |
57455-S84-A52 |
US $143.36 |
||
|
15
|
15
90172-S04-003 BoltFLANGE, 10X68 |
90172-S04-003 |
from US $3.26 |
||
|
16
|
16
90321-SE0-000 NutUPPER BALL PIN, 10MM |
90321-SE0-000 |
US $2.60 |
||
|
17
|
17
90363-SZ3-003 NutUPPER ARM, 12MM |
90363-SZ3-003 |
US $3.26 |
||
|
18
|
18
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
19
|
19
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
20
|
20
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
||
|
21
|
21
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
21
|
21
94201-29220
Pin
|
94201-29220 |
— | ||
|
21
|
21
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
21
|
21
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
22
|
22
94201-30220 Pin, SPLIT, 3.0X22 |
94201-30220 |
from US $0.44 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
