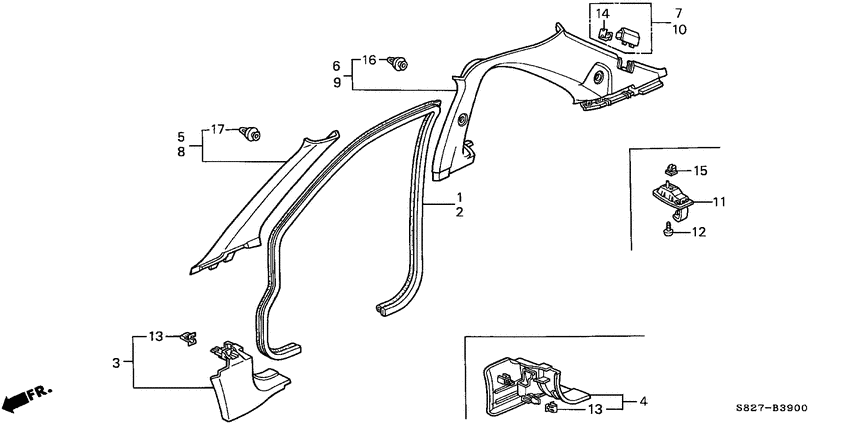

Pillar garnish (LH) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72315-S82-A01ZC
Seal
|
72315-S82-A01ZC |
— | ||
|
1
|
1
72315-S82-A01ZA
Seal
|
72315-S82-A01ZA |
— | ||
|
2
|
2
72355-S82-A01ZC
Seal
|
72355-S82-A01ZC |
— | ||
|
2
|
2
72355-S82-A01ZA
Seal
|
72355-S82-A01ZA |
— | ||
|
3
|
3
83111-S84-A00ZD
Lining
|
83111-S84-A00ZD |
— | ||
|
3
|
3
83111-S84-A00ZF
Lining
|
83111-S84-A00ZF |
— | ||
|
4
|
4
83161-S84-A00ZF
Lining
|
83161-S84-A00ZF |
— | ||
|
4
|
4
83161-S84-A00ZD
Lining
|
83161-S84-A00ZD |
— | ||
|
5
|
5
84101-S82-A01ZC
Garnish assy
|
84101-S82-A01ZC |
— | ||
|
5
|
5
84101-S82-A01ZA
Garnish assy
|
84101-S82-A01ZA |
— | ||
|
6
|
6
84130-S82-A00ZC
Lining
|
84130-S82-A00ZC |
— | ||
|
6
|
6
84130-S82-A00ZA
Lining
|
84130-S82-A00ZA |
— | ||
|
7
|
7
84133-S82-A00ZA
Cap
|
84133-S82-A00ZA |
— | ||
|
7
|
7
84133-S82-A00ZC
Cap
|
84133-S82-A00ZC |
— | ||
|
8
|
8
84151-S82-A01ZC
Garnish assy
|
84151-S82-A01ZC |
— | ||
|
8
|
8
84151-S82-A01ZA
Garnish assy
|
84151-S82-A01ZA |
— | ||
|
9
|
9
84180-S82-A00ZC
Lining
|
84180-S82-A00ZC |
— | ||
|
9
|
9
84180-S82-A00ZA
Lining
|
84180-S82-A00ZA |
— | ||
|
10
|
10
84183-S82-A00ZC
Cap
|
84183-S82-A00ZC |
— | ||
|
10
|
10
84183-S82-A00ZA
Cap
|
84183-S82-A00ZA |
— | ||
|
11
|
11
84184-S82-A00ZA
Hook
|
84184-S82-A00ZA |
— | ||
|
11
|
11
84184-S82-A00ZC
Hook
|
84184-S82-A00ZC |
— | ||
|
12
|
12
90144-SP0-000 ScrewTAPPING, 4X16 (PO) |
90144-SP0-000 |
US $0.98 |
||
|
13
|
13
90610-SR3-003 ClipGARNISH (KATO) |
90610-SR3-003 |
US $1.72 |
||
|
14
|
14
90666-SM4-003 ClipSNAP FITTING |
90666-SM4-003 |
US $1.40 |
||
|
15
|
15
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
16
|
16
91560-SP0-003 ClipDOOR LINING (GRAY) |
91560-SP0-003 |
US $2.07 |
||
| replacement | |||||
|
16
|
16
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
17
|
17
91560-S84-A11 ClipPILLAR GARNISH(BLACK) |
91560-S84-A11 |
US $2.12 |
||
