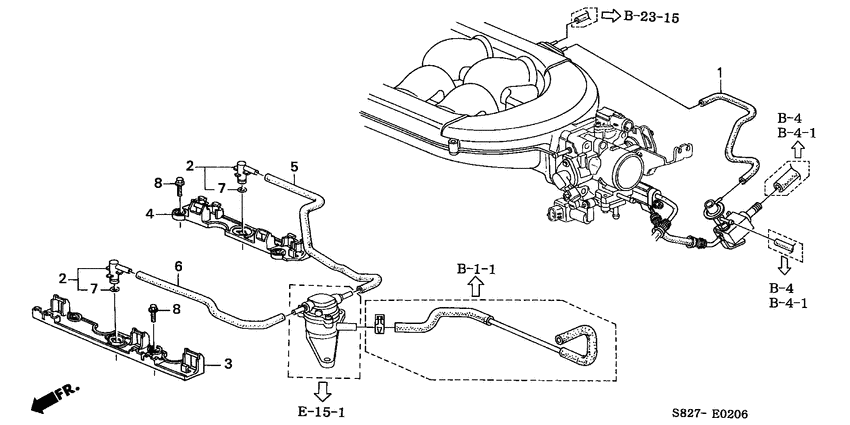

Tubing (V6; '01-) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KB
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17114-P8C-A20
Tube
|
17114-P8C-A20 |
— | ||
|
2
|
2
36202-P8E-A01 Joint setAIR ASSIST |
36202-P8E-A01 |
US $10.64 |
||
|
3
|
3
36283-P8F-A01 Holder compFR. AIR PASSAGE |
36283-P8F-A01 |
US $13.02 |
||
|
4
|
4
36284-P8F-A01 Holder compRR. AIR PASSAGE |
36284-P8F-A01 |
US $11.06 |
||
|
5
|
5
36288-P8F-A00
Tube
|
36288-P8F-A00 |
— | ||
|
6
|
6
36289-P8F-A00
Tube
|
36289-P8F-A00 |
— | ||
|
7
|
7
91301-P8E-A00 O-ring8.7X2.2 |
91301-P8E-A00 |
US $2.10 |
||
|
8
|
8
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
