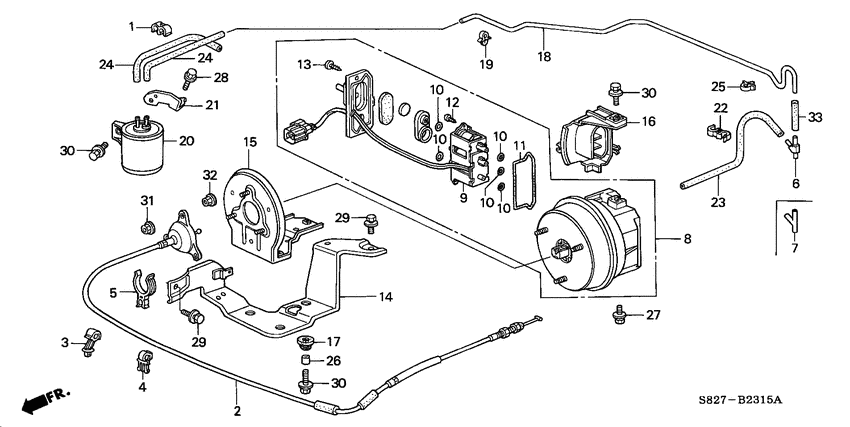

Auto cruise (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PM5-L51 ClampTUBE, 7.5X2 |
17205-PM5-L51 |
US $2.80 |
||
|
2
|
2
17880-P8C-A01
Wire
|
17880-P8C-A01 |
— | ||
|
3
|
3
17881-P8C-A01 Clamp aWIRE |
17881-P8C-A01 |
US $1.96 |
||
|
4
|
4
17882-P8C-A01 Clamp bWIRE |
17882-P8C-A01 |
US $2.31 |
||
|
5
|
5
17926-SM4-941 ClipTHROTTLE WIRE (BLACK) |
17926-SM4-941 |
US $2.66 |
||
|
6
|
6
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
8
|
8
36520-P8C-A01
Actuator assy
|
36520-P8C-A01 |
— | ||
|
9
|
9
36521-P8C-A01
Valve comp.
|
36521-P8C-A01 |
— | ||
|
10
|
10
36522-P0A-A01 O-ringP7A |
36522-P0A-A01 |
US $2.10 |
||
|
11
|
11
36523-P0A-A01 Packing |
36523-P0A-A01 |
US $6.02 |
||
|
12
|
12
36524-P0A-A01 ScrewTAPPING, 3X10 |
36524-P0A-A01 |
US $1.82 |
||
|
13
|
13
36525-P0A-A01 ScrewTAPPING, 4X16 |
36525-P0A-A01 |
US $2.03 |
||
|
14
|
14
36613-P8C-A00
Stay comp
|
36613-P8C-A00 |
— | ||
|
15
|
15
36614-P8C-A00
Cover comp.
|
36614-P8C-A00 |
— | ||
|
16
|
16
36615-PAA-A00 Cover comp.VENT |
36615-PAA-A00 |
US $10.08 |
||
|
17
|
17
36619-PC6-004 RubberMOUNTING |
36619-PC6-004 |
US $2.52 |
||
|
18
|
18
36623-P8C-A00 PipeVACUUM |
36623-P8C-A00 |
US $25.22 |
||
|
19
|
19
36624-P8C-A01
Clip
|
36624-P8C-A01 |
— | ||
|
20
|
20
36625-P0A-A01 Tank comp.VACUUM |
36625-P0A-A01 |
US $80.44 |
||
|
21
|
21
36626-P8C-G00
Stay comp
|
36626-P8C-G00 |
— | ||
|
22
|
22
36627-P8C-A01
Clamp
|
36627-P8C-A01 |
— | ||
|
23
|
23
95005-353-801-0 Tube3.5X380(95005-35001-10M) |
95005-353-801-0 |
US $4.14 |
||
|
24
|
24
36628-P8C-G00
Tube
|
36628-P8C-G00 |
— | ||
|
25
|
25
46392-SC2-003 ClampBRAKE PIPE (GRAY) |
46392-SC2-003 |
from US $1.82 |
||
|
26
|
26
90526-PC1-000 CollarDISTANCE |
90526-PC1-000 |
US $2.24 |
||
|
27
|
27
93401-060-100-8 Bolt-washer6X10 |
93401-060-100-8 |
from US $0.52 |
||
|
28
|
28
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
29
|
29
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
29
|
29
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
30
|
30
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
31
|
31
94050-05070 NutFLANGE, 5MM |
94050-05070 |
from US $0.44 |
||
|
32
|
32
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
33
|
33
95005-350-501-0 Tube3.5X50(95005-35001-10M) |
95005-350-501-0 |
US $0.89 |
||
