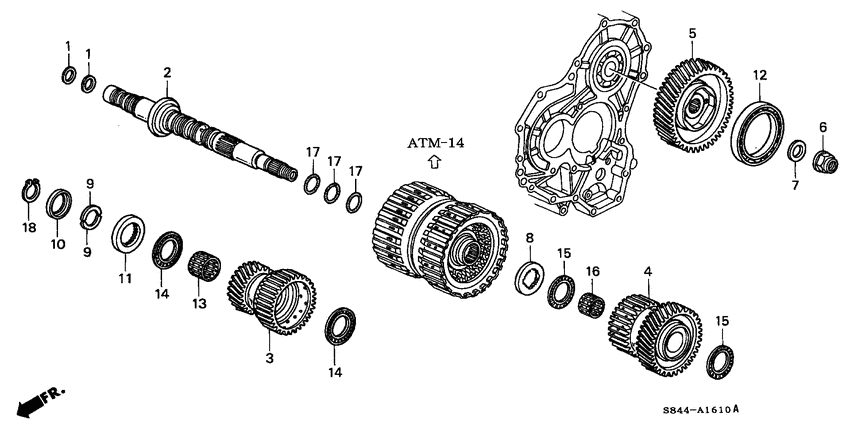

Secondary shaft (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22816-P6H-003 RingSEAL (35MM) |
22816-P6H-003 |
US $5.32 |
||
|
2
|
2
23230-P7V-J00
Shaft comp.
|
23230-P7V-J00 |
— | ||
|
3
|
3
23411-P7Z-000 GearSECONDARY SHAFT LOW |
23411-P7Z-000 |
US $144.64 |
||
|
4
|
4
23431-P7Z-030 GearSECONDARY SHAFT SECOND |
23431-P7Z-030 |
US $163.84 |
||
|
5
|
5
23495-P7Z-000 GearSECONDARY IDLE |
23495-P7Z-000 |
US $105.60 |
||
|
6
|
6
90203-P0Z-000 NutFLANGE, 24MM (LEFT HAND THREAD) |
90203-P0Z-000 |
US $7.56 |
||
|
7
|
7
90402-P0Z-000
Washer
|
90402-P0Z-000 |
— | ||
|
8
|
8
90408-P0Z-000
Washer
|
90408-P0Z-000 |
— | ||
|
8
|
8
90410-P0Z-000
Washer
|
90410-P0Z-000 |
— | ||
|
8
|
8
90412-P0Z-000
Washer
|
90412-P0Z-000 |
— | ||
|
8
|
8
90407-P0Z-000
Washer
|
90407-P0Z-000 |
— | ||
|
8
|
8
90409-P0Z-000
Washer
|
90409-P0Z-000 |
— | ||
|
8
|
8
90411-P0Z-000
Washer
|
90411-P0Z-000 |
— | ||
|
8
|
8
90406-P0Z-000
Washer
|
90406-P0Z-000 |
— | ||
|
9
|
9
90431-P0Z-000 Cotter32MM |
90431-P0Z-000 |
US $2.31 |
||
|
10
|
10
90432-P0Z-000 RetainerCOTTER |
90432-P0Z-000 |
US $2.31 |
||
|
11
|
11
90505-P0Z-000
Washer
|
90505-P0Z-000 |
— | ||
|
11
|
11
90507-P0Z-000
Washer
|
90507-P0Z-000 |
— | ||
|
11
|
11
90502-P0Z-000
Washer
|
90502-P0Z-000 |
— | ||
|
11
|
11
90504-P0Z-000
Washer
|
90504-P0Z-000 |
— | ||
|
11
|
11
90506-P0Z-000
Washer
|
90506-P0Z-000 |
— | ||
|
11
|
11
90503-P0Z-000
Washer
|
90503-P0Z-000 |
— | ||
|
12
|
12
91005-P7Z-003 BearingBALL, 65X88.5X10 |
91005-P7Z-003 |
US $38.40 |
||
|
13
|
13
91012-P6H-003 BearingNEEDLE, 38X44X29 |
91012-P6H-003 |
US $9.80 |
||
|
14
|
14
91019-P7Z-003 BearingTHRUST NEEDLE, 38X57X2.5 |
91019-P7Z-003 |
US $7 |
||
|
15
|
15
91023-P7T-013 BearingTHRUST NEEDLE, 34X55.5X2.5 |
91023-P7T-013 |
US $7 |
||
|
16
|
16
91027-P7Z-901 BearingNEEDLE, 34X40X28 |
91027-P7Z-901 |
US $9.80 |
||
|
17
|
17
91316-PR9-003 O-ring33X1.9 (ARAI) |
91316-PR9-003 |
US $1.54 |
||
|
18
|
18
94510-35000 CirclipEXTERNAL, 35MM |
94510-35000 |
from US $0.81 |
