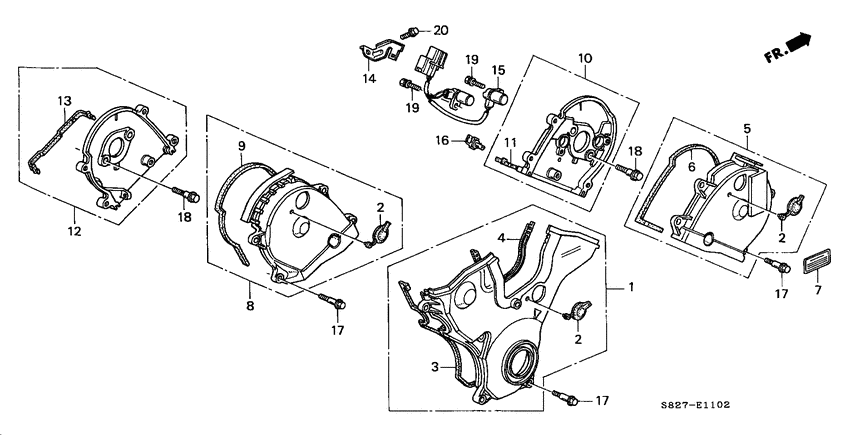

Timing belt cover (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11810-P8A-A00
Cover assy.
|
11810-P8A-A00 |
— | ||
|
2
|
2
11812-P8A-A00 GrommetTIMING BELT COVER |
11812-P8A-A00 |
from US $2.31 |
||
|
3
|
3
11813-P8A-A00 Packing aTIMING BELT LOWER COVER |
11813-P8A-A00 |
US $17.79 |
||
|
4
|
4
11814-P8A-A00 Packing bTIMING BELT LOWER COVER |
11814-P8A-A00 |
US $4.62 |
||
|
5
|
5
11820-P8A-A00
Cover assy.
|
11820-P8A-A00 |
— | ||
|
6
|
6
11822-P8A-A00 PackingFR. TIMING BELT UPPER COVER |
11822-P8A-A00 |
US $13.30 |
||
|
7
|
7
11823-P8A-A00 LabelTIMING BELT ADJUSTER INFORMATION |
11823-P8A-A00 |
US $1.75 |
||
|
8
|
8
11830-P8E-A00 Cover assy.RR. TIMING BELT UPPER |
11830-P8E-A00 |
US $33.15 |
||
|
9
|
9
11832-P8A-A00 PackingRR. TIMING BELT UPPER COVER |
11832-P8A-A00 |
US $13.30 |
||
|
10
|
10
11860-P8A-A00 Plate assy.FR. TIMING BELT BACK COVER |
11860-P8A-A00 |
US $51.20 |
||
|
11
|
11
11862-P8A-A00 PackingFR. TIMING BELT BACK COVER PLATE |
11862-P8A-A00 |
US $6.72 |
||
|
12
|
12
11870-P8A-A00 Plate assy.RR. TIMING BELT BACK COVER |
11870-P8A-A00 |
US $48.51 |
||
|
13
|
13
11872-P8A-A00 PackingRR. TIMING BELT BACK COVER PLATE |
11872-P8A-A00 |
US $6.72 |
||
|
14
|
14
32114-P8A-A00
Stay
|
32114-P8A-A00 |
— | ||
|
15
|
15
37840-P8A-A01
Sensor comp
|
37840-P8A-A01 |
— | ||
|
16
|
16
37845-P8A-A01 ClipHARNESS |
37845-P8A-A01 |
US $2.24 |
||
|
17
|
17
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
|
18
|
18
90017-P8A-A01 BoltSPECIAL, 8X29 |
90017-P8A-A01 |
from US $1.89 |
||
|
19
|
19
93401-050-160-8 Bolt-washer5X16 |
93401-050-160-8 |
from US $0.52 |
||
|
20
|
20
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
