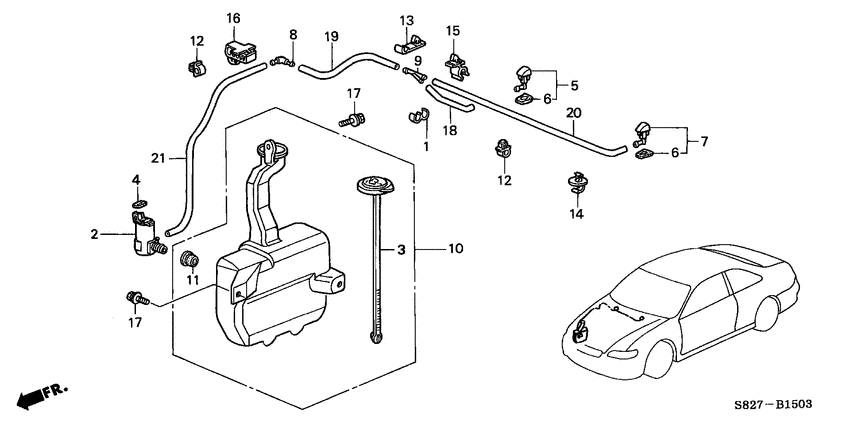

Windshield washer (4) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36062-671-000
Clamp b
|
36062-671-000 |
— | ||
|
2
|
2
38512-SC4-673 MotorWASHER (DENSO) |
38512-SC4-673 |
US $41.73 |
||
|
3
|
3
76802-SV1-004
Cap unit
|
76802-SV1-004 |
— | ||
|
4
|
4
76807-SE4-A02 PackingT-TYPE) (DENSO |
76807-SE4-A02 |
US $2.37 |
||
|
5
|
5
76810-S82-A01 Nozzle assy.R. WINDSHIELD WASHER (BLACK) |
76810-S82-A01 |
US $13.82 |
||
|
6
|
6
76813-S84-A02
Packing
|
76813-S84-A02 |
— | ||
|
7
|
7
76815-S82-A01 Nozzle assy.L. WINDSHIELD WASHER (BLACK) |
76815-S82-A01 |
US $13.82 |
||
|
8
|
8
76828-SH0-A02 Joint l, WASHER TUBE (DENSO) |
76828-SH0-A02 |
US $4.07 |
||
|
9
|
9
76830-SR0-004 Joint yTUBE (DENSO) |
76830-SR0-004 |
US $3.92 |
||
|
10
|
10
76840-S87-E02
Tank set
|
76840-S87-E02 |
— | ||
|
11
|
11
76842-SE4-A02 BushWASHER TANK (DENSO) |
76842-SE4-A02 |
from US $2.52 |
||
|
12
|
12
90652-SB2-023 ClipTUBE, 7MM |
90652-SB2-023 |
from US $2.22 |
||
|
13
|
13
91512-SE0-003 ClipWASHER TUBE |
91512-SE0-003 |
US $2.31 |
||
|
14
|
14
91522-SM4-003 ClipTUBE & INSULATOR |
91522-SM4-003 |
US $1.75 |
||
|
15
|
15
91570-S04-003 ClipWASHER TUBE |
91570-S04-003 |
US $2.37 |
||
|
16
|
16
91576-S84-A01 ClipWASHER TUBE |
91576-S84-A01 |
US $3.29 |
||
|
17
|
17
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
18
|
18
95003-070-197-0
Tube
|
95003-070-197-0 |
— | ||
|
19
|
19
95003-070-537-0
Tube
|
95003-070-537-0 |
— | ||
|
20
|
20
95003-070-787-0
Tube
|
95003-070-787-0 |
— | ||
|
21
|
21
95003-070-907-0
Tube
|
95003-070-907-0 |
— |
