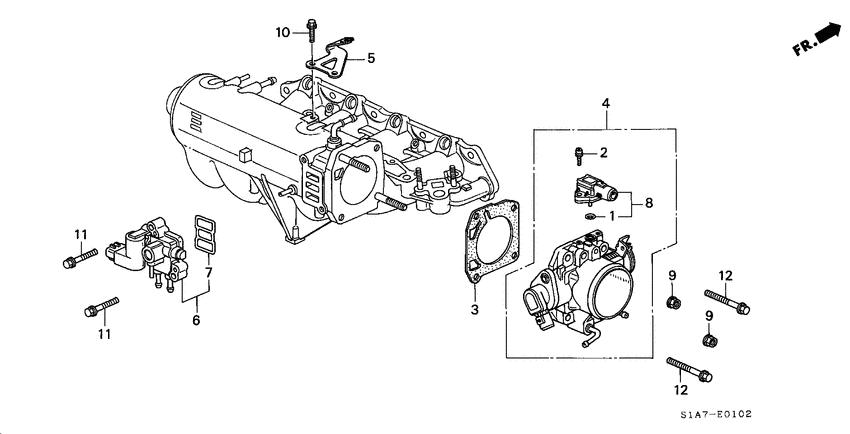

Throttle body (2.2L) Diagram Honda ACCORD
- Year
- 2000
- Model code
- ACCORD
- Sales region
- General
- Engine
- H22A
- transmission
- 5MT
- Number of doors
- 4
- grade
- TYPE R
- abs
- +
- area code
- KG
- left-hand drive
- +
- immobilizer
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16075-P07-000 O-ring |
16075-P07-000 |
from US $2.70 |
||
|
2
|
2
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
3
|
3
16176-P73-004 GasketTHROTTLE BODY (NIPPON LEAKLESS) |
16176-P73-004 |
US $6.22 |
||
|
4
|
4
16400-PDE-E01
Throttle Body Assy
|
16400-PDE-E01 |
— | ||
|
5
|
5
16411-PDE-E00
Stay
|
16411-PDE-E00 |
— | ||
|
6
|
6
36460-PAA-L21
Valve assy.
|
36460-PAA-L21 |
— | ||
|
7
|
7
36461-PAA-A01 PackingROTARY AIR CONTROL VALVE |
36461-PAA-A01 |
from US $4.50 |
||
|
8
|
8
37830-PAA-S00 Sensor setMAP |
37830-PAA-S00 |
US $376.72 |
||
|
9
|
9
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
10
|
10
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
11
|
11
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
12
|
12
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
