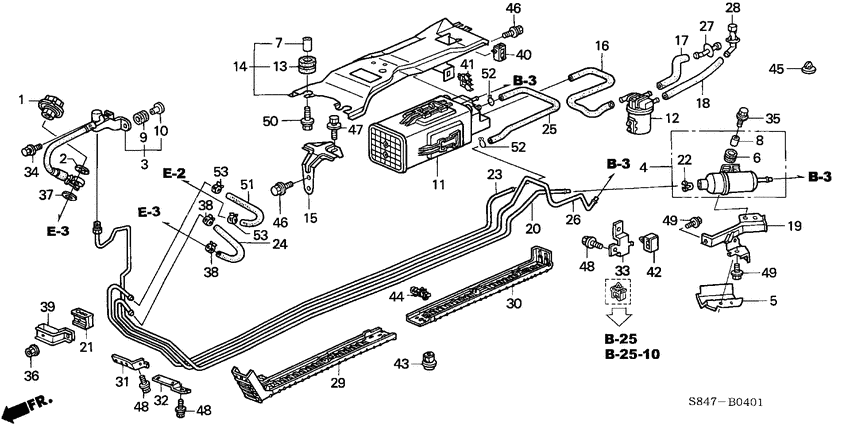

Fuel pipe (2) Diagram Honda ACCORD
- Year
- 2002
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16680-PE7-661
Damper assy.
|
16680-PE7-661 |
— | ||
| replacement | |||||
|
1
|
1
16680-PCX-003 Damper assy.PULSATION |
16680-PCX-003 |
US $49.37 |
||
|
2
|
2
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
3
|
3
16720-PAA-A11
Hose comp. a
|
16720-PAA-A11 |
— | ||
|
4
|
4
16900-S84-G01
Strainer comp.
|
16900-S84-G01 |
— | ||
|
5
|
5
16918-S82-G00
Stay
|
16918-S82-G00 |
— | ||
|
6
|
6
16922-S84-G01 RubberMOUNTING |
16922-S84-G01 |
US $2.10 |
||
|
7
|
7
16923-S84-A00 CollarDISTANCE |
16923-S84-A00 |
US $2.10 |
||
|
8
|
8
16923-S84-G01 Collar |
16923-S84-G01 |
US $2.31 |
||
|
9
|
9
17213-PH7-020 Rubber bAIR CLEANER CASE MOUNTING |
17213-PH7-020 |
US $2.66 |
||
|
10
|
10
17216-PH7-000 CollarAIR CLEANER |
17216-PH7-000 |
US $2.52 |
||
|
11
|
11
17300-S82-G02
Canister assy
|
17300-S82-G02 |
— | ||
|
12
|
12
17315-S82-G01 FilterCANISTER |
17315-S82-G01 |
US $92.16 |
||
|
13
|
13
17322-S84-A00 RubberCANISTER MOUNTING |
17322-S84-A00 |
US $1.61 |
||
|
14
|
14
17358-S82-G00
Bracket
|
17358-S82-G00 |
— | ||
|
15
|
15
17359-S82-G00
Bracket c
|
17359-S82-G00 |
— | ||
|
16
|
16
17372-S82-G00
Tube
|
17372-S82-G00 |
— | ||
|
17
|
17
17373-S84-A00
Tube
|
17373-S84-A00 |
— | ||
|
18
|
18
17374-S84-A00
Tube
|
17374-S84-A00 |
— | ||
|
19
|
19
17378-S82-G00
Bracket
|
17378-S82-G00 |
— | ||
|
20
|
20
17700-S4K-B00
Pipe
|
17700-S4K-B00 |
— | ||
|
21
|
21
17701-S84-A00 RubberFUEL PIPE INSULATOR |
17701-S84-A00 |
US $4.62 |
||
|
22
|
22
17711-S84-005 RetainerNATURAL |
17711-S84-005 |
US $4.62 |
||
|
23
|
23
17720-S4K-B00
Pipe
|
17720-S4K-B00 |
— | ||
|
24
|
24
17723-S84-A00
Hose
|
17723-S84-A00 |
— | ||
|
25
|
25
17728-S82-G00
Tube
|
17728-S82-G00 |
— | ||
|
26
|
26
17740-S4K-U00
Pipe
|
17740-S4K-U00 |
— | ||
|
27
|
27
17742-S84-A01 JointDRAIN TUBE |
17742-S84-A01 |
US $5.18 |
||
|
28
|
28
17743-S84-A01 JointDRAIN BYPASS TUBE |
17743-S84-A01 |
US $4.48 |
||
|
29
|
29
17752-S84-A01
Cover
|
17752-S84-A01 |
— | ||
|
30
|
30
17753-S84-A01
Cover
|
17753-S84-A01 |
— | ||
|
31
|
31
17761-S84-A00
Stay a
|
17761-S84-A00 |
— | ||
|
32
|
32
17762-S84-A00
Stay b
|
17762-S84-A00 |
— | ||
|
33
|
33
17763-S84-A00
Stay c
|
17763-S84-A00 |
— | ||
|
34
|
34
90001-PGM-000 Bolt-washerSPECIAL, 6X30 |
90001-PGM-000 |
US $1.33 |
||
|
35
|
35
90101-S84-G00 Bolt-washer6X25 |
90101-S84-G00 |
US $2.10 |
||
|
36
|
36
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
37
|
37
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
38
|
38
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
39
|
39
91591-S84-A00
Bracket
|
91591-S84-A00 |
— | ||
|
40
|
40
91592-S82-G01
Clip
|
91592-S82-G01 |
— | ||
|
41
|
41
91594-S82-G01
Clip
|
91594-S82-G01 |
— | ||
|
42
|
42
91594-S84-A01 Clip cFUEL PIPE |
91594-S84-A01 |
US $3.01 |
||
|
43
|
43
91598-S84-A01 ClipFUEL PIPE |
91598-S84-A01 |
US $6.51 |
||
|
44
|
44
91599-S84-A01
Clamp
|
91599-S84-A01 |
— | ||
|
45
|
45
91614-S84-G01 GrommetSUB FRAME DRAIN HOLE |
91614-S84-G01 |
US $1.75 |
||
|
46
|
46
93403-050-120-8 Bolt-washer5X12 |
93403-050-120-8 |
US $0.59 |
||
|
47
|
47
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
48
|
48
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
49
|
49
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
50
|
50
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
51
|
51
95001-752-955-0 HoseFUEL, 7.5X295 (95001-75001-50M) |
95001-752-955-0 |
US $7.70 |
||
|
52
|
52
95002-02134 ClipTUBE (B12.5) |
95002-02134 |
US $0.52 |
||
|
53
|
53
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
