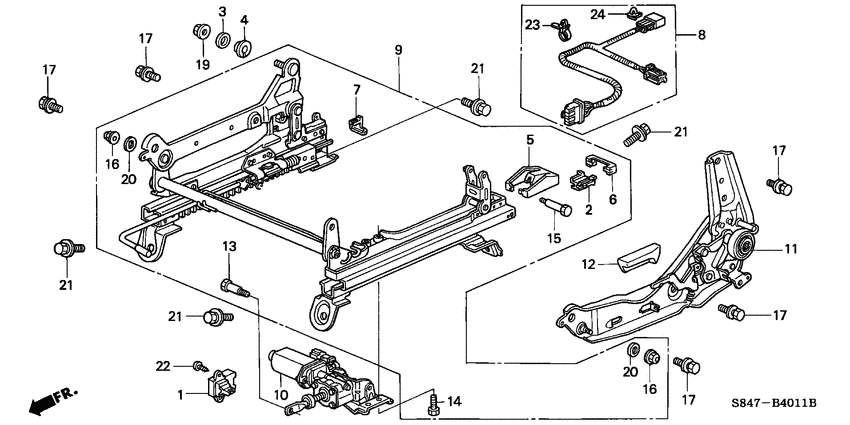

Front seat components (L.; 2) Diagram Honda ACCORD
- Year
- 1999
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20B
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- abs
- +
- area code
- KB
- left-hand drive
- +
- air conditioner (auto)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-SM4-J32ZV
Switch assy
|
35950-SM4-J32ZV |
— | ||
|
1
|
1
35950-SM4-J32ZS
Switch assy
|
35950-SM4-J32ZS |
— | ||
|
2
|
2
77517-SA5-014 CapSLIDE ADJUSTER |
77517-SA5-014 |
US $4.48 |
||
|
3
|
3
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
4
|
4
77208-SA5-003 BushNYLON (TS TECH) |
77208-SA5-003 |
US $2.80 |
||
|
5
|
5
81223-SM4-J32
Cover
|
81223-SM4-J32 |
— | ||
|
6
|
6
81262-S84-A01 CapSLIDE ADJUSTER END |
81262-S84-A01 |
US $3.92 |
||
|
7
|
7
81272-S84-A01 CapSLIDE ADJUSTER UPPER END |
81272-S84-A01 |
US $3.92 |
||
|
8
|
8
81311-S84-A20
Cord
|
81311-S84-A20 |
— | ||
|
9
|
9
81512-S84-A21 AdjusterL. HEIGHT |
81512-S84-A21 |
US $253.44 |
||
|
10
|
10
81513-S84-A21
Motor assy.
|
81513-S84-A21 |
— | ||
|
11
|
11
81630-S84-A21
Adjuster assy
|
81630-S84-A21 |
— | ||
|
12
|
12
81631-S10-003ZB KnobL. RECLINING *YR169L* |
81631-S10-003ZB |
US $6.44 |
||
|
12
|
12
81631-S10-003ZK KnobL. RECLINING *NH284L* |
81631-S10-003ZK |
US $5.88 |
||
|
13
|
13
90122-ST0-J21
Bolt
|
90122-ST0-J21 |
— | ||
|
14
|
14
90123-ST0-J21
Bolt
|
90123-ST0-J21 |
— | ||
|
15
|
15
90125-SP0-003
Bolt b
|
90125-SP0-003 |
— | ||
|
16
|
16
90127-S84-A21
Nut b
|
90127-S84-A21 |
— | ||
|
17
|
17
90143-SR3-900 Bolt-washer10X22 |
90143-SR3-900 |
US $2.73 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
20
|
20
90519-SP0-003
Washer a
|
90519-SP0-003 |
— | ||
|
21
|
21
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
22
|
22
93903-14220 ScrewTAPPING, 4X10 |
93903-14220 |
US $0.37 |
||
|
23
|
23
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
24
|
24
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
