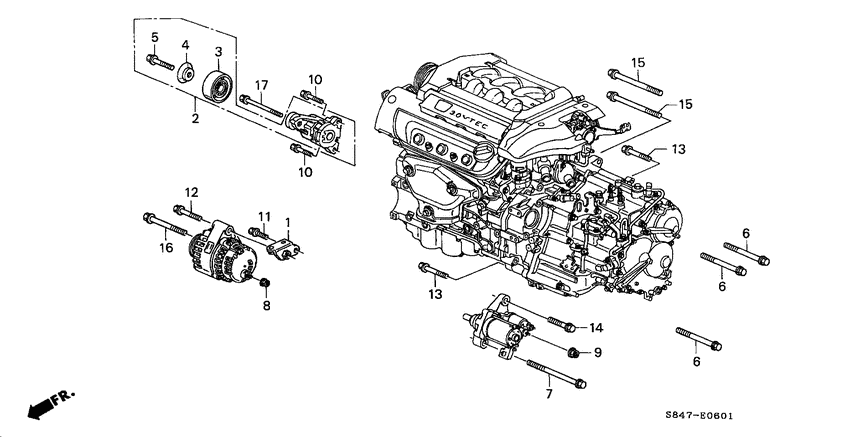

Alternator stay (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31113-P8E-A00 StayALTERNATOR |
31113-P8E-A00 |
US $31.50 |
||
|
2
|
2
31170-PXK-J01
Tensioner assy
|
31170-PXK-J01 |
— | ||
|
3
|
3
31180-P8A-A01 Pulley compIDLER |
31180-P8A-A01 |
US $38.78 |
||
|
4
|
4
31185-P8A-A01 CoverBEARING |
31185-P8A-A01 |
US $3.29 |
||
|
5
|
5
90002-P8A-A01 BoltSPECIAL, 10X30 |
90002-P8A-A01 |
US $2.72 |
||
|
6
|
6
95701-120-700-8 BoltFLANGE, 12X70 |
95701-120-700-8 |
US $1.48 |
||
|
7
|
7
90122-P8A-A01 BoltFLANGE, 12X135 |
90122-P8A-A01 |
US $5.74 |
||
|
8
|
8
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
9
|
9
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
10
|
10
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
11
|
11
95701-080-220-8 BoltFLANGE, 8X22 |
95701-080-220-8 |
from US $0.78 |
||
|
12
|
12
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
13
|
13
95701-100-550-8 BoltFLANGE, 10X55 |
95701-100-550-8 |
from US $0.89 |
||
|
14
|
14
95701-120-450-8 BoltFLANGE, 12X45 |
95701-120-450-8 |
from US $1.18 |
||
|
15
|
15
95701-120-800-8 BoltFLANGE, 12X80 |
95701-120-800-8 |
from US $1.48 |
||
|
16
|
16
95801-100-650-8 BoltFLANGE, 10X65 |
95801-100-650-8 |
from US $1.18 |
||
|
17
|
17
96001-060-600-0 BoltFLANGE, 6X60 |
96001-060-600-0 |
from US $0.81 |
