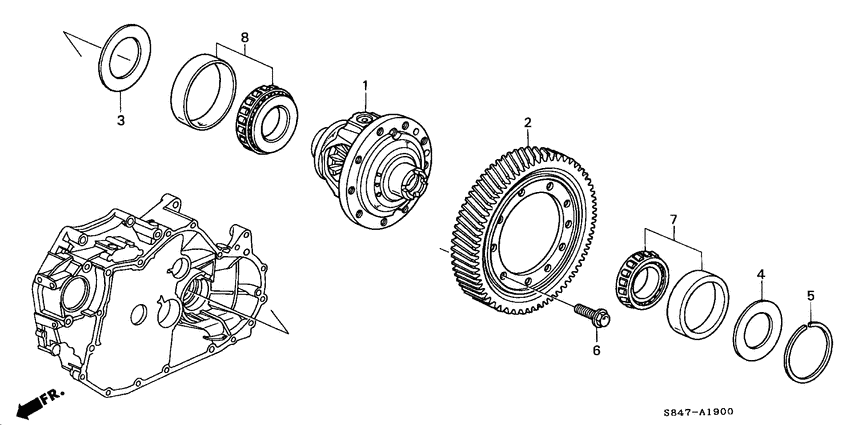

Differential (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-P7X-A00
Differential comp.
|
41100-P7X-A00 |
— | ||
|
2
|
2
41233-P7Z-000 GearFINAL DRIVEN |
41233-P7Z-000 |
US $275.20 |
||
|
3
|
3
41381-P7Z-000
Spacer
|
41381-P7Z-000 |
— | ||
|
4
|
4
41382-P7V-J00
Spacer
|
41382-P7V-J00 |
— | ||
|
5
|
5
41442-P7T-000
Shim e
|
41442-P7T-000 |
— | ||
|
5
|
5
41451-P7T-000
Shim n
|
41451-P7T-000 |
— | ||
|
5
|
5
41441-PGH-000
Shim d
|
41441-PGH-000 |
— | ||
|
5
|
5
41450-PGH-000
Shim m
|
41450-PGH-000 |
— | ||
|
5
|
5
41446-P7T-000
Shim i
|
41446-P7T-000 |
— | ||
|
5
|
5
41455-P7T-000
Shim r
|
41455-P7T-000 |
— | ||
|
5
|
5
41445-PGH-000
Shim h
|
41445-PGH-000 |
— | ||
|
5
|
5
41454-PGH-000
Shim q
|
41454-PGH-000 |
— | ||
|
5
|
5
41441-P7T-000
Shim d
|
41441-P7T-000 |
— | ||
|
5
|
5
41450-P7T-000
Shim m
|
41450-P7T-000 |
— | ||
|
5
|
5
41440-PGH-000
Shim c
|
41440-PGH-000 |
— | ||
|
5
|
5
41449-PGH-000
Shim l
|
41449-PGH-000 |
— | ||
|
5
|
5
41445-P7T-000
Shim h
|
41445-P7T-000 |
— | ||
|
5
|
5
41454-P7T-000
Shim q
|
41454-P7T-000 |
— | ||
|
5
|
5
41444-PGH-000
Shim g
|
41444-PGH-000 |
— | ||
|
5
|
5
41453-PGH-000
Shim p
|
41453-PGH-000 |
— | ||
|
5
|
5
41440-P7T-000
Shim c
|
41440-P7T-000 |
— | ||
|
5
|
5
41449-P7T-000
Shim l
|
41449-P7T-000 |
— | ||
|
5
|
5
41439-PGH-000
Shim b
|
41439-PGH-000 |
— | ||
|
5
|
5
41448-PGH-000
Shim k
|
41448-PGH-000 |
— | ||
|
5
|
5
41457-PGH-000
Shim t
|
41457-PGH-000 |
— | ||
|
5
|
5
41444-P7T-000
Shim g
|
41444-P7T-000 |
— | ||
|
5
|
5
41453-P7T-000
Shim p
|
41453-P7T-000 |
— | ||
|
5
|
5
41443-PGH-000
Shim f
|
41443-PGH-000 |
— | ||
|
5
|
5
41452-PGH-000
Shim o
|
41452-PGH-000 |
— | ||
|
5
|
5
41439-P7T-000
Shim b
|
41439-P7T-000 |
— | ||
|
5
|
5
41438-PGH-000
Shim a
|
41438-PGH-000 |
— | ||
|
5
|
5
41448-P7T-000
Shim k
|
41448-P7T-000 |
— | ||
|
5
|
5
41457-P7T-000
Shim t
|
41457-P7T-000 |
— | ||
|
5
|
5
41447-PGH-000
Shim j
|
41447-PGH-000 |
— | ||
|
5
|
5
41456-PGH-000
Shim s
|
41456-PGH-000 |
— | ||
|
5
|
5
41443-P7T-000
Shim f
|
41443-P7T-000 |
— | ||
|
5
|
5
41452-P7T-000
Shim o
|
41452-P7T-000 |
— | ||
|
5
|
5
41442-PGH-000
Shim e
|
41442-PGH-000 |
— | ||
|
5
|
5
41451-PGH-000
Shim n
|
41451-PGH-000 |
— | ||
|
5
|
5
41438-P7T-000
Shim a
|
41438-P7T-000 |
— | ||
|
5
|
5
41458-P7T-000
Shim u
|
41458-P7T-000 |
— | ||
|
5
|
5
41447-P7T-000
Shim j
|
41447-P7T-000 |
— | ||
|
5
|
5
41456-P7T-000
Shim s
|
41456-P7T-000 |
— | ||
|
5
|
5
41446-PGH-000
Shim i
|
41446-PGH-000 |
— | ||
|
5
|
5
41455-PGH-000
Shim r
|
41455-PGH-000 |
— | ||
|
6
|
6
90003-PA9-003 BoltFLANGE, 10MM |
90003-PA9-003 |
US $2.24 |
||
|
7
|
7
91122-P7V-J01
Bearing
|
91122-P7V-J01 |
— | ||
|
8
|
8
91121-P7V-J01
Bearing
|
91121-P7V-J01 |
— |
