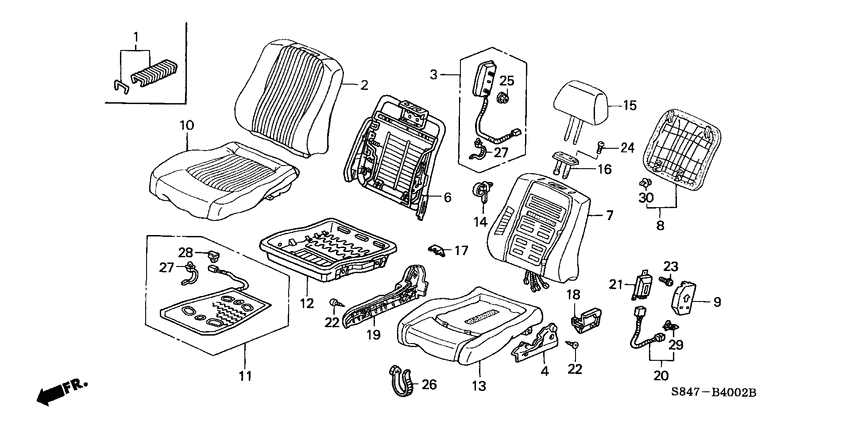

Front seat (R.; 2) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
04811-S4K-A80ZC
Cover set
|
04811-S4K-A80ZC |
— | ||
|
2
|
2
04811-S4K-A80ZB
Cover set
|
04811-S4K-A80ZB |
— | ||
|
3
|
3
06783-S84-B81
Module kit
|
06783-S84-B81 |
— | ||
|
4
|
4
81115-S04-000ZH
Cover
|
81115-S04-000ZH |
— | ||
|
4
|
4
81115-S04-000ZG
Cover
|
81115-S04-000ZG |
— | ||
|
6
|
6
81126-S4K-A81
Frame comp
|
81126-S4K-A81 |
— | ||
|
7
|
7
81127-S4K-A81
Pad comp
|
81127-S4K-A81 |
— | ||
|
8
|
8
81128-S87-A62ZB Cover comp.FR. SEATBACK (LEATHER) *YR169L* |
81128-S87-A62ZB |
US $165.12 |
||
|
8
|
8
81128-S87-A62ZA
Cover comp.
|
81128-S87-A62ZA |
— | ||
|
9
|
9
81129-S87-A71 CoverR. FR. SEATBACK OPDS |
81129-S87-A71 |
US $11.76 |
||
|
10
|
10
81131-S4K-B61ZB
Cover
|
81131-S4K-B61ZB |
— | ||
|
10
|
10
81131-S4K-B61ZA
Cover
|
81131-S4K-B61ZA |
— | ||
|
11
|
11
81134-S87-C82
Heater comp.
|
81134-S87-C82 |
— | ||
|
12
|
12
81136-S84-A03
Frame comp
|
81136-S84-A03 |
— | ||
|
13
|
13
81137-S4K-B61 Pad compR. FR. SEAT CUSHION (TS TECH) |
81137-S4K-B61 |
US $163.84 |
||
|
14
|
14
81139-S4K-A81
Clip
|
81139-S4K-A81 |
— | ||
|
15
|
15
81140-S4K-B81ZB
Headrest assy
|
81140-S4K-B81ZB |
— | ||
|
15
|
15
81140-S4K-B81ZA
Headrest assy
|
81140-S4K-B81ZA |
— | ||
|
16
|
16
81144-SH3-003YD Guide compHEADREST *NH284L* |
81144-SH3-003YD |
US $11.06 |
||
|
16
|
16
81144-SH3-003ZX Guide compHEADREST *YR169L* |
81144-SH3-003ZX |
US $10.08 |
||
|
17
|
17
81195-SM4-J01ZS CoverFOOT OUTER *NH283L* |
81195-SM4-J01ZS |
US $7.42 |
||
|
17
|
17
81195-SM4-J01ZN CoverFOOT OUTER *YR169L* |
81195-SM4-J01ZN |
US $7.42 |
||
|
18
|
18
81196-S84-A00ZB
Cover
|
81196-S84-A00ZB |
— | ||
|
18
|
18
81196-S84-A00ZD
Cover
|
81196-S84-A00ZD |
— | ||
|
19
|
19
81238-S84-A00ZC
Cover
|
81238-S84-A00ZC |
— | ||
|
19
|
19
81238-S84-A00ZB
Cover
|
81238-S84-A00ZB |
— | ||
|
20
|
20
81312-S87-000
Cord
|
81312-S87-000 |
— | ||
|
21
|
21
81334-S84-A21
Opds unit
|
81334-S84-A21 |
— | ||
|
22
|
22
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
23
|
23
90160-SZ3-003 Screw5X12 |
90160-SZ3-003 |
US $1.54 |
||
|
24
|
24
90161-SB4-003 ScrewFLAT, 4X16 |
90161-SB4-003 |
US $2.10 |
||
|
25
|
25
90321-S84-000 Nut-washer8MM |
90321-S84-000 |
US $1.48 |
||
|
26
|
26
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
27
|
27
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
28
|
28
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
29
|
29
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
30
|
30
91556-SP0-003 ClipCOUPLER(BROWN) |
91556-SP0-003 |
from US $1.26 |
