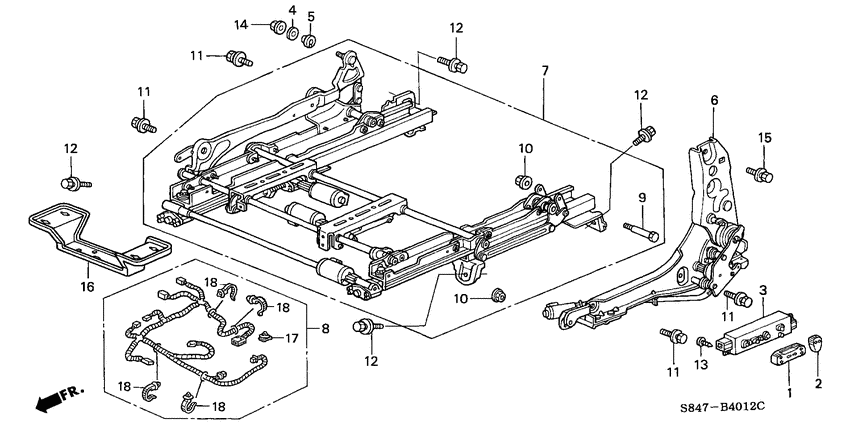

Front seat components (L.; 3) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.0IV6
- abs
- +
- area code
- KB
- left-hand drive
- +
- sunroof
- +
- immobilizer
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35951-S87-A51ZB Knob aPOWER SEAT *YR169L* |
35951-S87-A51ZB |
US $8.26 |
||
|
1
|
1
35951-S87-A51ZA Knob aPOWER SEAT *NH284L* |
35951-S87-A51ZA |
US $8.26 |
||
|
2
|
2
35952-S87-A51ZB Knob bPOWER SEAT *YR169L* |
35952-S87-A51ZB |
US $4.20 |
||
|
2
|
2
35952-S87-A51ZA Knob bPOWER SEAT *NH284L* |
35952-S87-A51ZA |
US $4.20 |
||
|
3
|
3
35958-S87-A51
Switch assy
|
35958-S87-A51 |
— | ||
|
4
|
4
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
5
|
5
81117-S47-003 BushNYLON(TS TECH) |
81117-S47-003 |
US $1.61 |
||
|
6
|
6
81630-S87-A52
Adjuster assy
|
81630-S87-A52 |
— | ||
|
7
|
7
81660-S87-A52
Adjuster
|
81660-S87-A52 |
— | ||
|
8
|
8
81711-S87-C80
Cord
|
81711-S87-C80 |
— | ||
|
9
|
9
90126-S87-A50 Bolt |
90126-S87-A50 |
US $2.31 |
||
|
10
|
10
90127-S87-A50 NutSELF-LOCK |
90127-S87-A50 |
from US $0.43 |
||
|
11
|
11
90143-SR3-000 Bolt-washer10X22 |
90143-SR3-000 |
US $2.38 |
||
|
12
|
12
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
13
|
13
93903-14220 ScrewTAPPING, 4X10 |
93903-14220 |
US $0.37 |
||
|
14
|
14
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
15
|
15
90143-SR3-900 Bolt-washer10X22 |
90143-SR3-900 |
US $2.73 |
||
|
16
|
16
81314-S87-A72
Holder
|
81314-S87-A72 |
— | ||
|
17
|
17
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
18
|
18
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
